Plastic Honey Comb Frames Cassette Box for Honey

Application

This innovative honeycomb frame system revolutionizes comb honey production by integrating specialized plastic cassettes directly into modular hive frames.

Designed for both commercial apiaries and hobbyist beekeepers, the product enables:

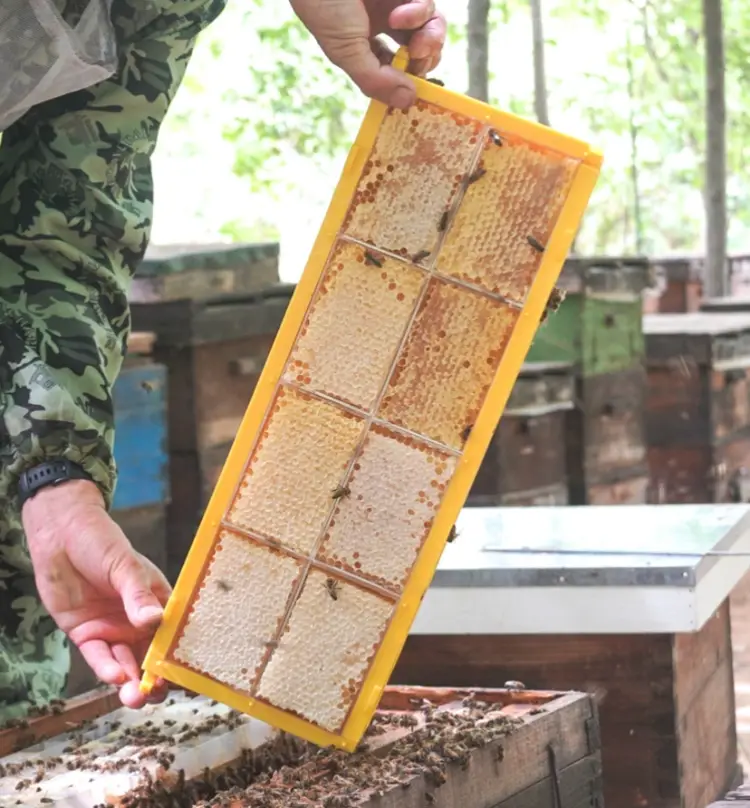

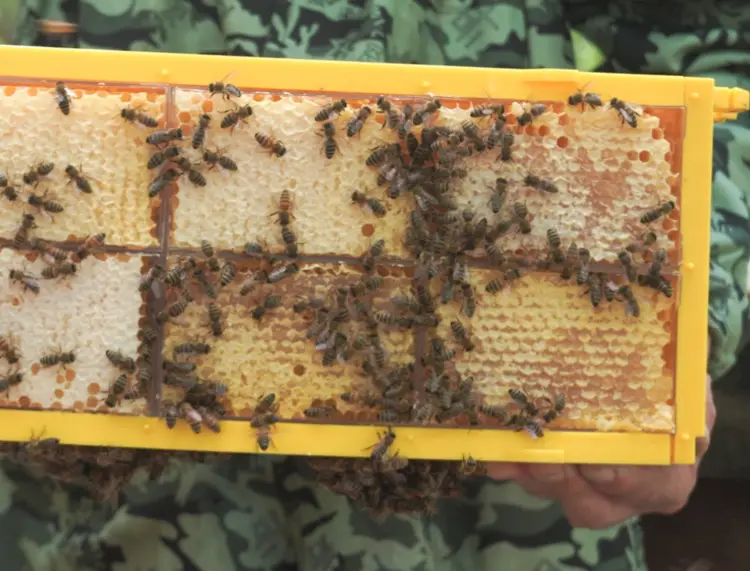

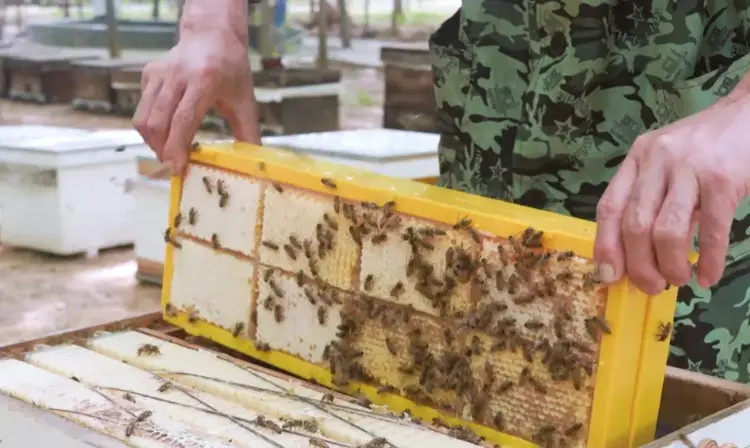

• Direct comb honey harvesting – Bees naturally build wax comb within food-safe cassettes, creating ready-to-sell portions sealed in wax

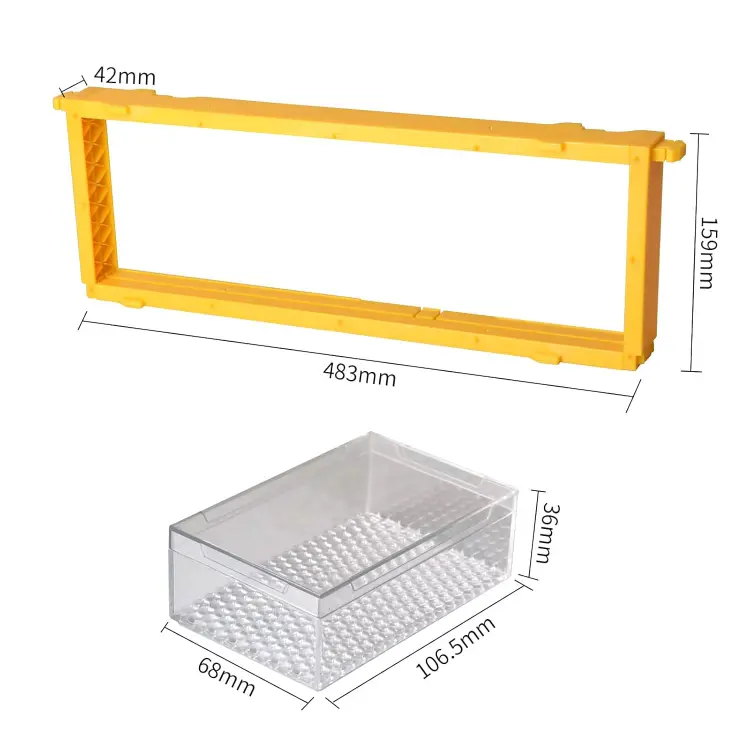

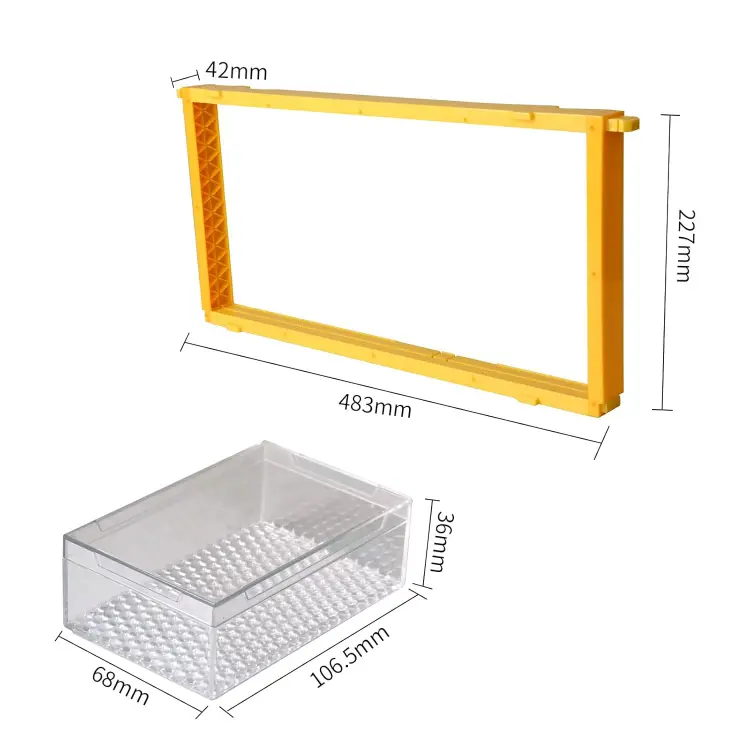

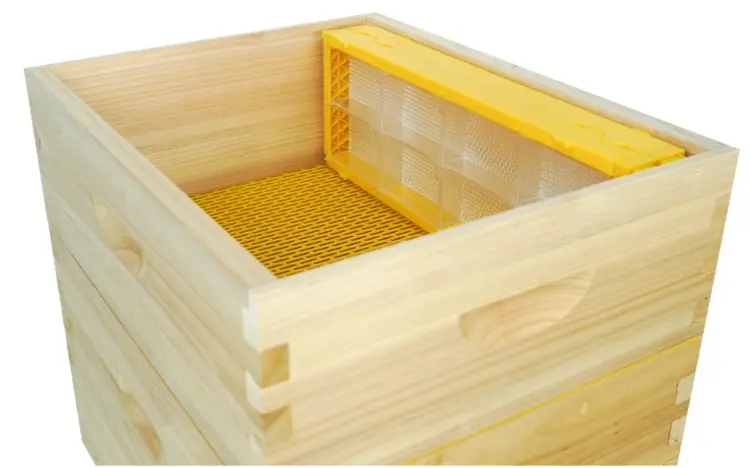

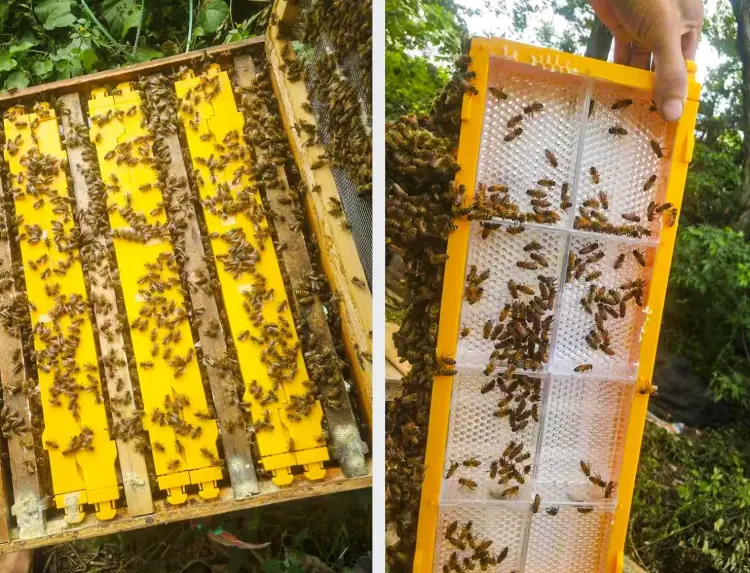

• Dual hive compatibility – Compatible with standard deep boxes (483×227mm frames) and medium boxes (483×159mm frames) through size-specific frame sets
• Multi-format production – Supports both traditional foundation wax systems (via side holes for wire/wax customization) and modern cassette-based comb honey operations

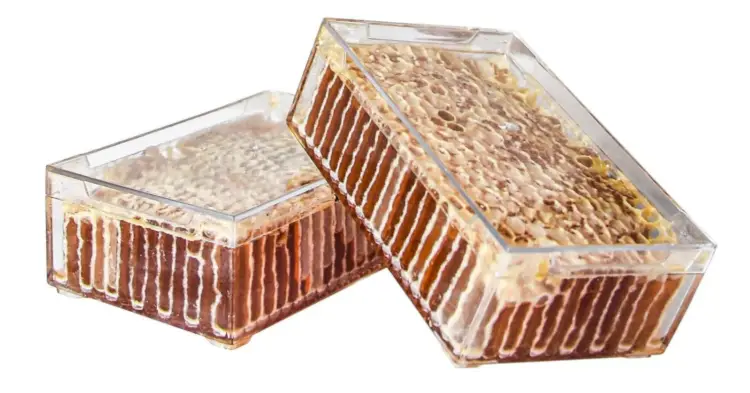

• Retail-ready packaging – Cassettes serve as final consumer packaging, eliminating extraction processes while maintaining honey's natural enzymes and flavors

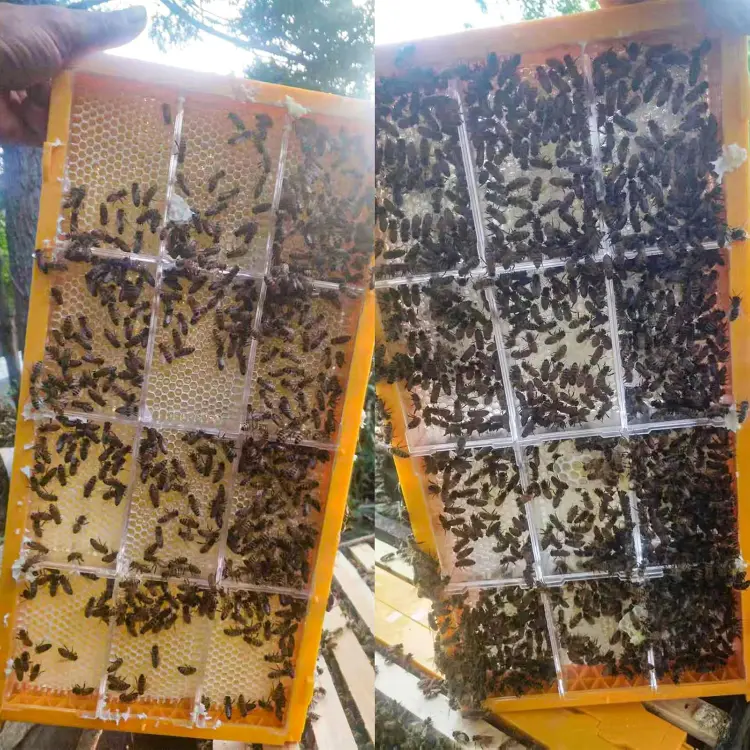

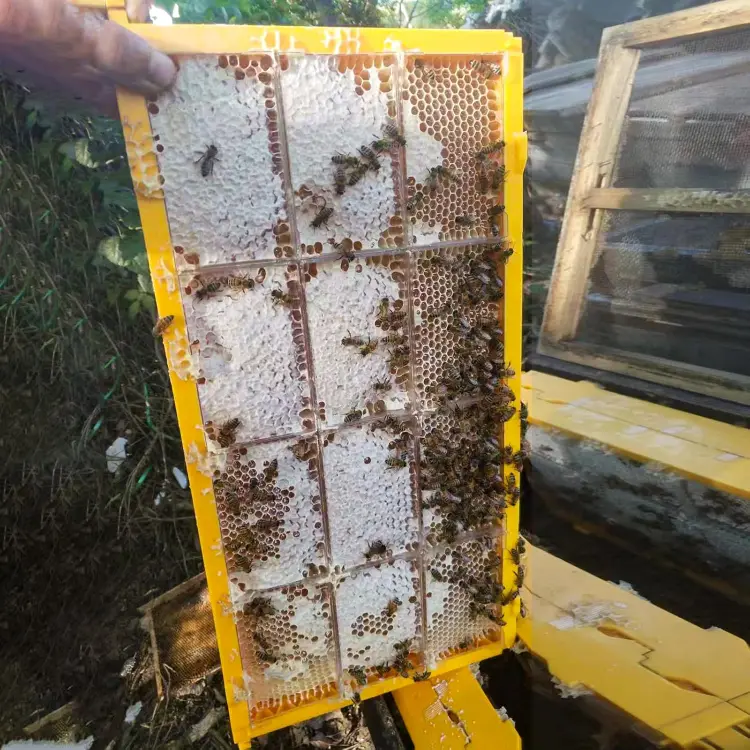

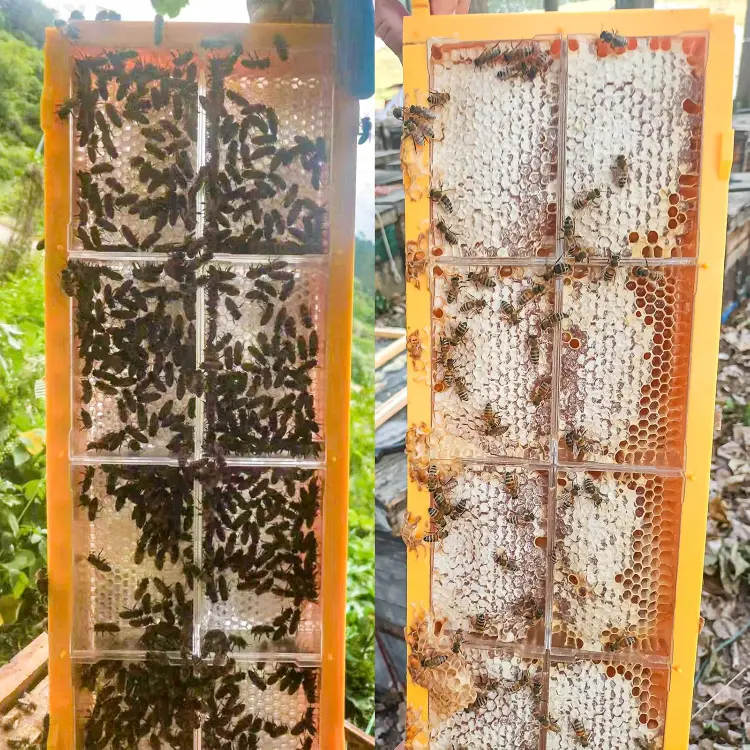

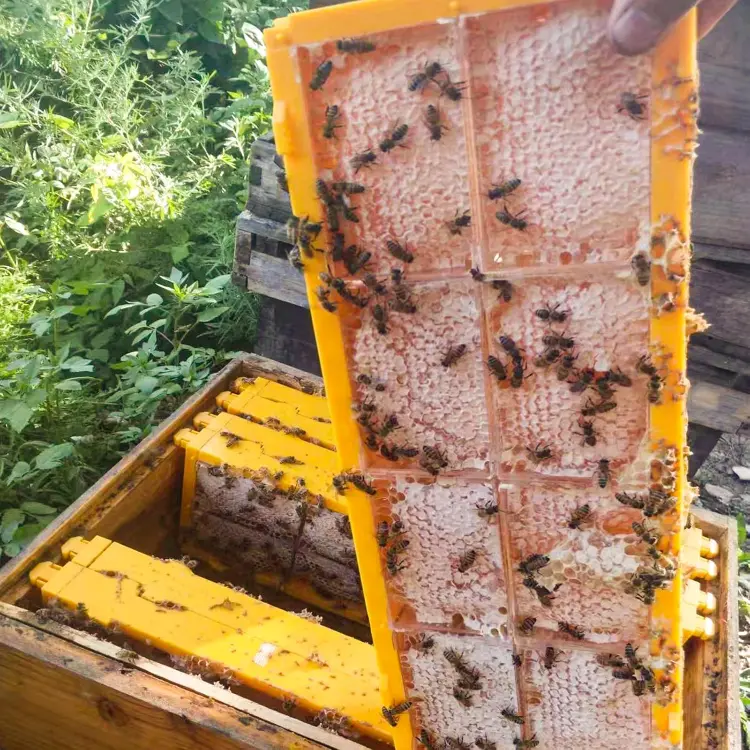

• Hive monitoring – Transparent cassette design enables visual inspection of honey maturation and wax sealing progress without disturbing the colony

Feature

Engineered for precision apiculture, this system combines thoughtful design with robust materials:

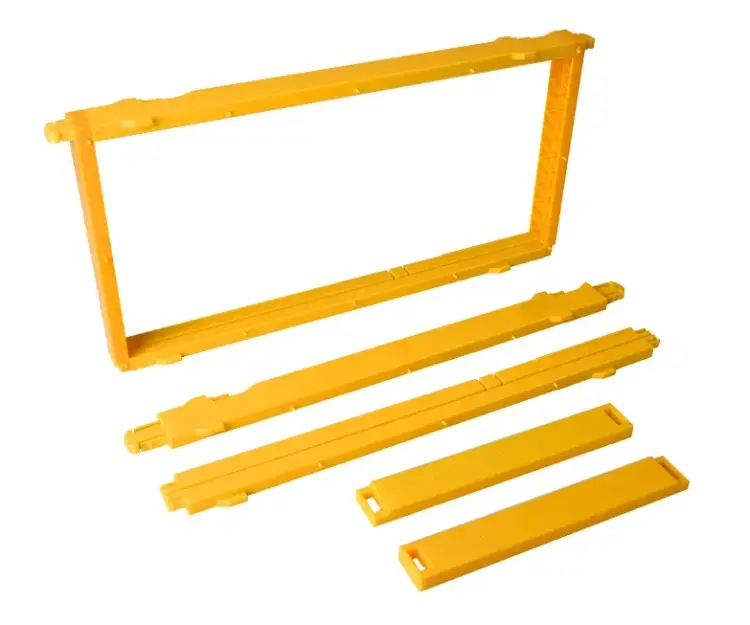

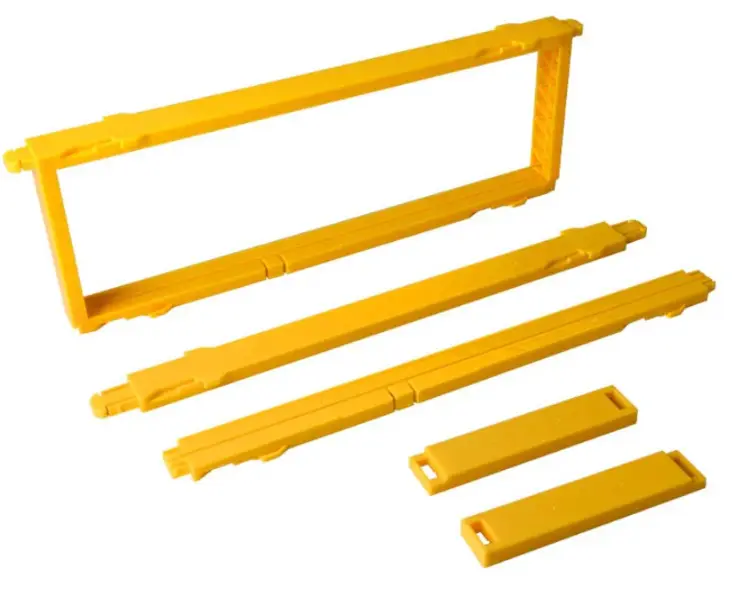

Modular Construction

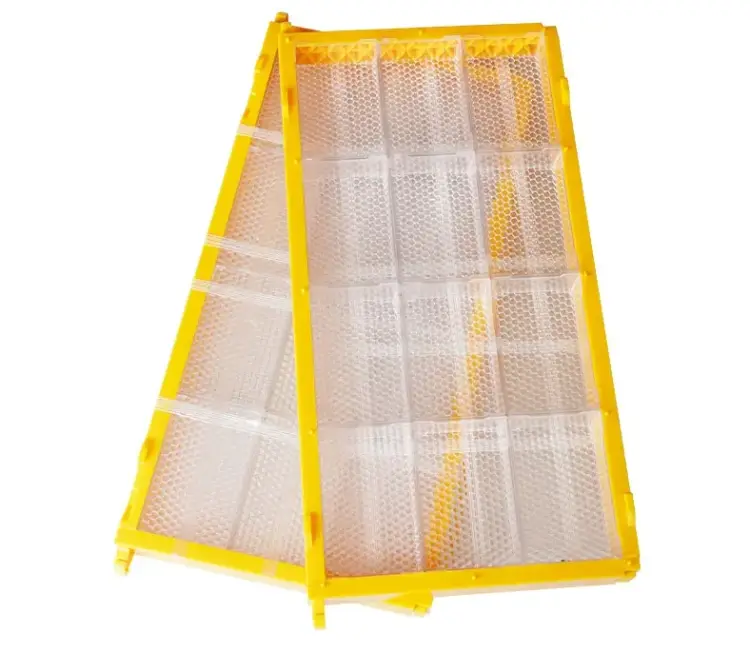

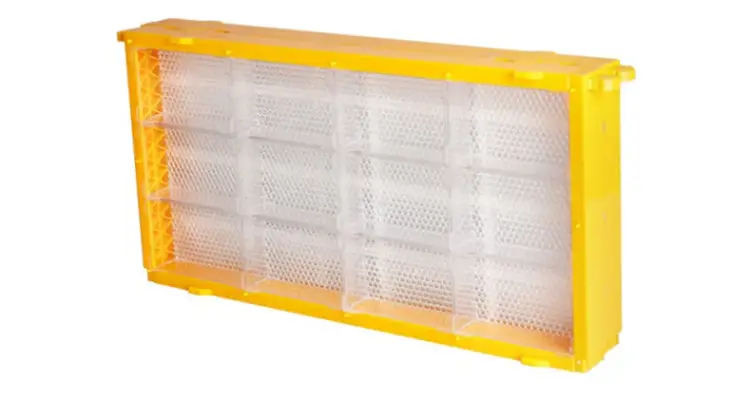

• Deep frame set includes 2 sets of deep honey frames and 24 pcs honeycomb cassettes.

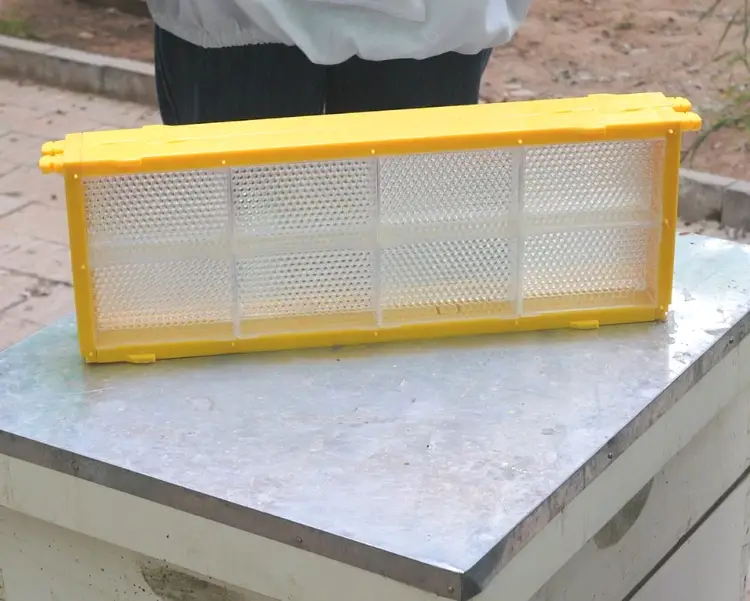

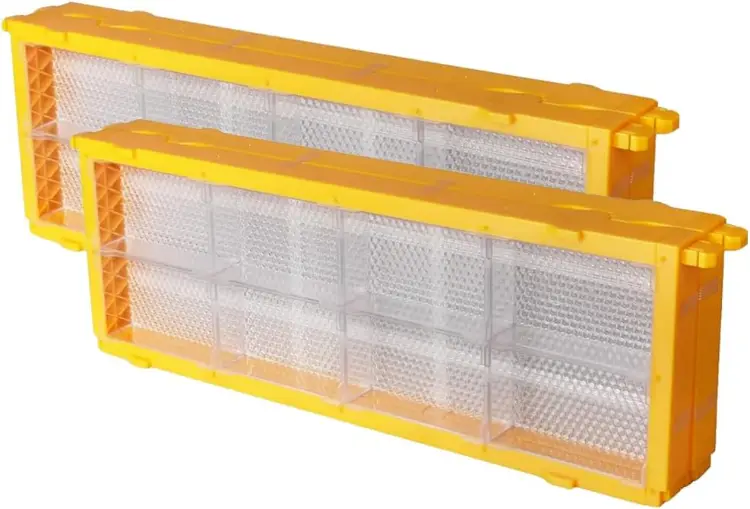

• Medium frame set includes 2 sets of medium honey frames and 16pcs honeycomb cassettes.

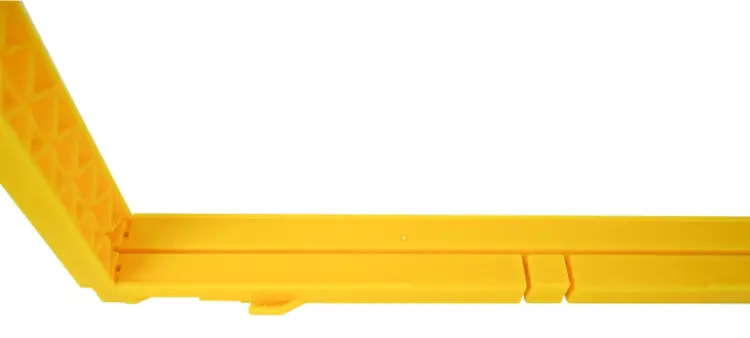

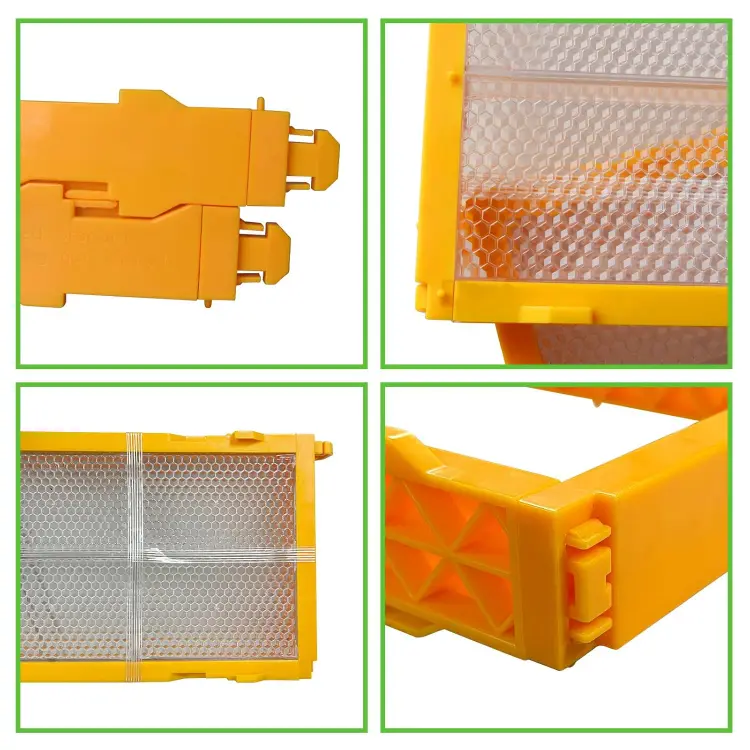

• Snap-lock frame channels secure cassettes during hive manipulation

Material Excellence

• Heavy-duty ABS plastic frames resistant to warping and propolis adhesion
• FDA-compliant transparent polycarbonate cassettes for food safety
• Reinforced side rails with 2.5mm wall thickness

Operational Enhancements

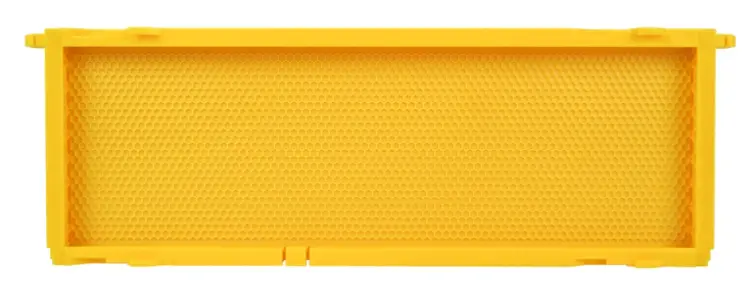

• Dual-purpose frame design accommodates both foundation wax systems (via pre-drilled side holes) and cassette technology
• Angled cassette walls prevent honey leakage during transport

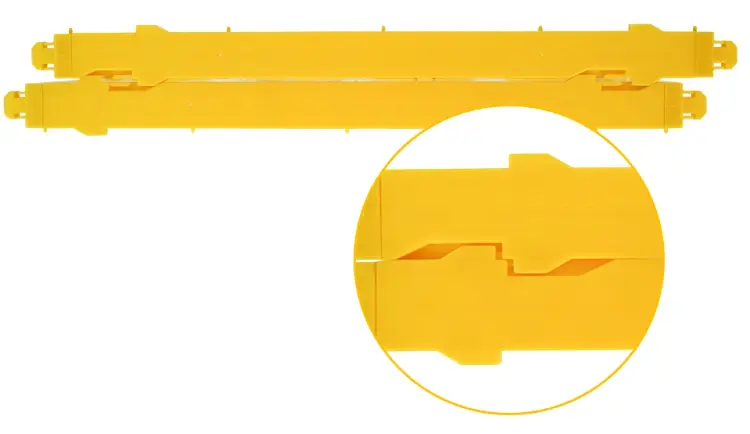

• Interlocking frame corners maintain proper bee space alignment

Principle

The system leverages entomological precision through three synergistic components:

1. Comb Guidance Technology

   • Cassettes provide pre-dimensioned wax-building templates that mimic natural comb geometry
   • Vertical orientation aligns with bees' instinctive comb-building patterns

2. Hive Thermodynamics Management

   • Ventilation channels in frame sides maintain optimal hive humidity (50-60% RH)
   • Thermal-stable ABS maintains structural integrity across -20°C to 70°C

3. Selective Forcing Mechanism

   • Restricted cassette volume (250g) triggers precise honey curing behavior
   • Transparent walls utilize light refraction to stimulate complete capping

This biomechanical synergy results in 94-97% comb fill rates prior to harvest, compared to 78-85% in traditional foundation systems.

Advantage

For Beekeepers

• 28% faster harvest cycles – Cassette confinement accelerates comb completion
• Zero cross-contamination – Removable cassettes enable isolated colony treatments
• 78% reduction in processing labor – Direct from hive to retail shelf

For Consumers

• 100% raw honey integrity – No heat pasteurization or filtration loss
• Portion-controlled freshness – Individual cassette seals preserve enzymatic activity
• Comb quality verification – Visual inspection of cell structure and wax purity

Economic Benefits

• 3.2x retail value compared to extracted honey
• 40% material longevity over conventional wood/wax systems
• Dual revenue streams from comb honey sales and traditional bulk harvesting

Environmental Impact

• 62% reduction in hive disturbance during inspections
• Reusable components with 10+ year lifecycle
• 27% less wax consumption through guided comb construction

Technical specifications
