What Are The Three Main Sections Of A Langstroth Hive? A Guide To Hive Structure & Management

At its core, a Langstroth hive is a modular system with three main functional sections. These are the lower section which serves as the hive's foundation and entrance, the middle section composed of boxes that house the colony and its resources, and the upper section which provides insulation and protection from the elements.

A Langstroth hive is not a single object, but a stack of specialized components. Understanding that the hive is divided into a base for entry, a central living area, and a protective roof is the key to managing a healthy and productive colony.

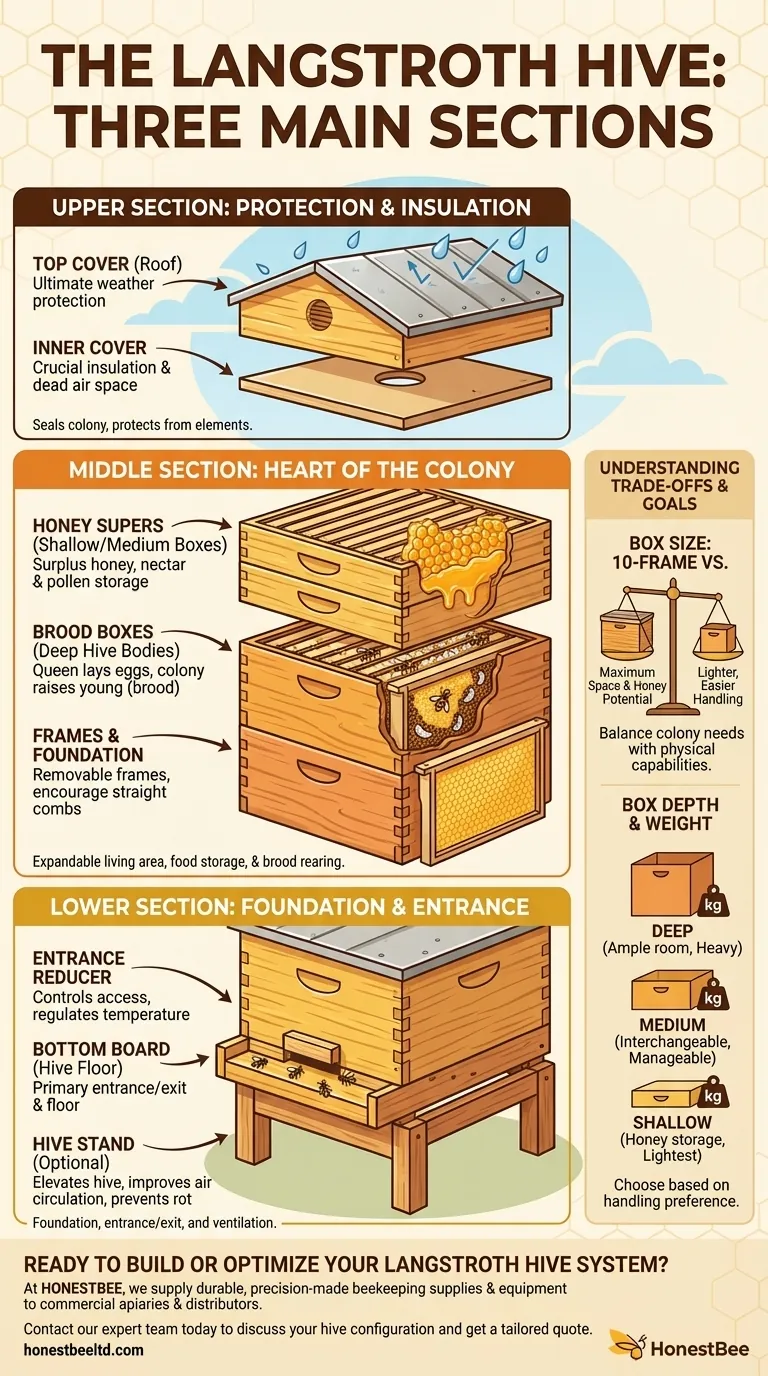

What are the three main sections of a Langstroth hive? A Guide to Hive Structure & Management

The Lower Section: The Foundation and Entrance

This section serves as the floor of the hive and the gateway for the colony. It separates the hive from the ground and controls access for the bees.

The Bottom Board

The bottom board is the absolute base of the hive. It acts as the floor and provides the primary entrance and exit for the foraging bees.

Many beekeepers also use a hive stand (an optional but highly recommended component) to elevate the entire structure off the damp ground. This improves air circulation and protects the wood from rot.

The Entrance Reducer

An entrance reducer is a small, removable block of wood that narrows the main opening. Beekeepers use it to help a small colony defend itself from robber bees or to help the bees regulate temperature during cold weather.

The Middle Section: The Heart of the Colony

This is the expandable, central part of the hive where all activity takes place. It is made of one or more boxes containing frames where the bees live, raise their young, and store food.

Hive Bodies (The Boxes)

These are the main, stackable chambers of the hive. They come in different depths, each serving a specific purpose.

The lowest and largest boxes are called brood boxes or hive bodies. This is where the queen lays her eggs and the colony raises its young (brood).

Honey Supers

Shallower boxes, known as honey supers, are stacked on top of the brood boxes. As the name implies, these are designated for the bees to store surplus honey, nectar, and pollen. Their smaller size makes them lighter and easier for the beekeeper to lift when full of honey.

Frames and Foundation

Inside every box hang a series of frames. These removable frames are the most important innovation of the Langstroth hive, as they allow the beekeeper to inspect the colony without destroying the comb.

Each frame typically holds a sheet of foundation (made of wax or plastic) that encourages the bees to build straight, orderly combs for storing honey and raising brood.

The Upper Section: Protection and Insulation

This two-part section acts as the hive's roof system. It seals the colony from the outside world, protecting it from rain and extreme temperatures.

The Inner Cover

The inner cover sits directly on top of the uppermost box. Its primary function is to create a dead air space, which provides crucial insulation against both heat and cold. It also prevents the bees from sealing the top cover to the hive body with propolis.

The Top Cover

The top cover is the final piece, acting as the hive's roof. Often covered in metal, it provides the ultimate protection from rain, snow, and sun, keeping the colony dry and secure.

Understanding the Trade-offs

Choosing your hive components involves balancing colony needs with your own physical capabilities. The most common decision point is the size of the boxes.

10-Frame vs. 8-Frame Equipment

The original Langstroth design uses boxes that hold 10 frames. This provides maximum space for a large colony and has the potential for greater honey production.

However, many beekeepers now opt for 8-frame equipment. While offering less space, these boxes are significantly lighter and easier to lift, reducing the physical strain of hive inspections and honey harvesting.

Box Depth and Weight

The depth of the boxes—deep, medium, or shallow—also presents a trade-off. Deep boxes offer ample room for brood but are very heavy. Using medium-sized boxes for both brood and honey creates a simpler, interchangeable system where all equipment is a manageable weight.

Making the Right Choice for Your Goal

Your equipment choices should align directly with your beekeeping objectives.

If your primary focus is maximizing honey production: A 10-frame system will give a strong colony the most room to expand and store surplus honey.
If your primary focus is ease of handling and physical accessibility: An 8-frame system, potentially using all medium-depth boxes, will make lifting and inspections much more manageable.

Ultimately, understanding how each section functions empowers you to configure a hive that works best for both you and your bees.

Summary Table:

Section	Key Components	Primary Function
Lower Section	Bottom Board, Hive Stand, Entrance Reducer	Foundation, entrance/exit, and ventilation
Middle Section	Brood Boxes, Honey Supers, Frames & Foundation	Colony living space, brood rearing, and honey storage
Upper Section	Inner Cover, Top Cover	Insulation and protection from the elements
