At its core, a solar wax melter is a simple, passive device that leverages solar energy to perform its function. Its main features are an insulated box with a glass top to trap heat, an angled internal tray to hold old honeycombs, and a collection system to gather the pure, rendered beeswax as it melts and separates from debris.
A solar wax melter is more than just its components; it is a complete system designed to harness the greenhouse effect. It provides beekeepers with a safe, cost-free, and sustainable method for efficiently reclaiming valuable beeswax from old or damaged frames.
How a Solar Wax Melter Works: The Core Components
A solar melter’s design is elegant in its simplicity, with each part optimized to capture and utilize the sun's energy.
The Insulated Chamber and Glazing
The main body is an insulated box, topped with a sheet of high-strength glass, often double-glazed. This creates a small greenhouse, trapping solar radiation and raising the internal temperature significantly.
Under direct sunlight, temperatures can reach between 70°C and 120°C (158°F to 248°F), which is more than sufficient to melt beeswax (which has a melting point of around 62-64°C).
The Angled Tray and Filter System
Inside the box, a tray or metal plate is fixed at an angle. This is where the beekeeper places the old honeycombs or cappings that need rendering.
As the wax melts, it flows down the angled surface due to gravity. It passes through a mesh screen or filter that separates the pure wax from "slumgum"—the collection of old cocoons, pollen, and other debris left behind.
The Collection Pan
At the bottom of the incline, a removable pan or tray collects the clean, liquid beeswax. Some beekeepers place a small amount of water in this pan, which can help clean the wax further as it cools. Once full, the melted wax can be poured into molds to form solid, high-quality blocks.
The Principles Behind the Design
The effectiveness of a solar wax melter comes from its reliance on fundamental physics and durable materials, not complex machinery.
Unwavering Safety and Sustainability
The most significant feature is its complete independence from external power sources. With no electrical connections, heating elements, or fuel requirements, it is exceptionally safe to operate.
This design makes it a 100% green and cost-free solution after the initial purchase, perfect for off-grid apiaries or any beekeeper looking to reduce their environmental footprint.
Material Selection for Durability
High-quality melters are often constructed from stainless steel. This material is chosen for its durability, resistance to high temperatures, and uniform heat distribution.
Furthermore, stainless steel is easy to clean, ensuring the device can be maintained for years of reliable service.
Understanding the Trade-offs
While highly effective, it's important to recognize the limitations inherent in a solar-powered device.
Dependence on Sunlight
The primary trade-off is its complete reliance on the sun. The melter is only effective on clear, sunny, and warm days. This can limit its use in cooler climates or during overcast seasons, making processing less predictable.
Batch Size and Throughput
Most consumer-grade solar wax melters are designed for small- to medium-scale operations. While perfect for hobbyists or sideline beekeepers, they process wax in batches and may not be sufficient for large commercial apiaries that need to render hundreds of frames quickly.
Making the Right Choice for Your Apiary
A solar wax melter is an invaluable tool, but its suitability depends on your specific goals.
- If your primary focus is sustainability and cost savings: A solar melter is an unparalleled choice, offering zero operational costs and a minimal environmental footprint.
- If your primary focus is safety and simplicity: This is the safest method for processing wax, eliminating the risks associated with electricity, gas, or open flames.
- If your primary focus is high-volume, predictable output: You may need to use a solar melter in conjunction with a higher-capacity steam or electric melter to meet commercial demands.
Ultimately, a solar wax melter represents an elegant and practical solution for transforming waste into a valuable resource with minimal effort and maximum efficiency.
Summary Table:
| Feature | Description | Key Benefit |
|---|---|---|
| Insulated Chamber & Glazing | An insulated box with a glass top that traps solar heat. | Creates a greenhouse effect, reaching temperatures of 70-120°C (158-248°F). |
| Angled Tray & Filter | A sloped tray with a mesh screen for holding old honeycombs. | Separates pure, melted wax from debris (slumgum) via gravity. |
| Collection Pan | A removable pan at the bottom of the incline. | Collects clean, liquid beeswax for easy molding into blocks. |
| Power Source | Operates entirely on solar energy. | 100% green, safe (no electricity/fuel), and has zero operational costs. |
| Construction Material | Often made from durable stainless steel. | Ensures longevity, uniform heat distribution, and easy cleaning. |
Ready to enhance your apiary's efficiency and sustainability?
For commercial apiaries and beekeeping equipment distributors, HONESTBEE supplies high-quality, durable beekeeping supplies and equipment through wholesale-focused operations. A reliable solar wax melter is just one part of a complete, efficient operation.
Contact HONESTBEE today to discuss your wholesale needs and discover how our equipment can help you maximize productivity and profitability.

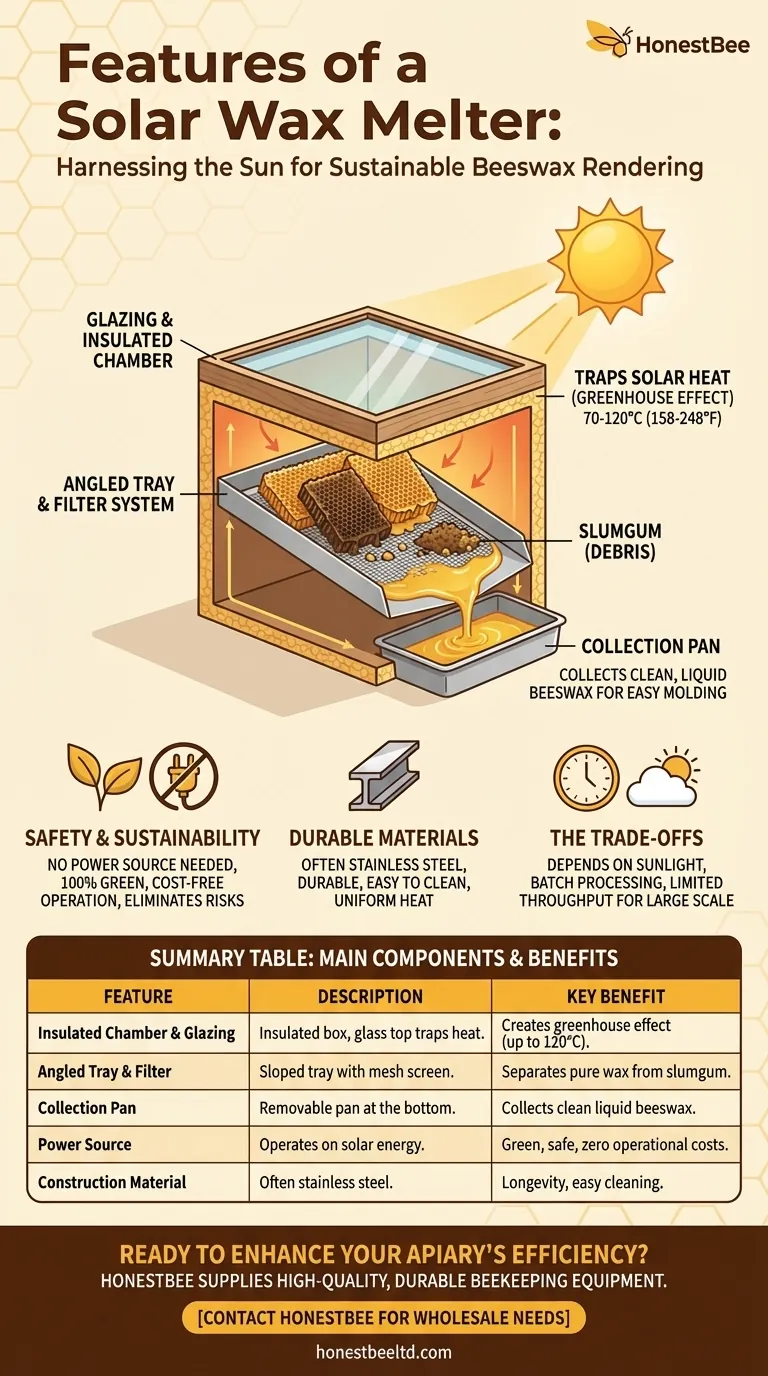

Visual Guide
