At its core, a solar wax melter functions as a simple, passive solar oven. It uses the greenhouse effect to trap the sun's energy, raising the internal temperature high enough to melt beeswax from old frames or cappings, allowing gravity to separate the pure, liquid wax from impurities.
The fundamental principle is converting sunlight into heat within an insulated box. This heat melts the wax, which then flows downwards through a filter system into a collection pan, leaving behind debris and resulting in clean, reclaimed beeswax with zero operational cost.
The Core Mechanism: From Sunlight to Liquid Wax
A solar wax melter operates on a few straightforward physics principles. Understanding how these elements work together clarifies why this simple device is so effective for beekeepers.
Capturing Solar Energy
The top of the melter is a transparent lid, typically made of glass or a double-web polycarbonate plate. This lid allows short-wave solar radiation (sunlight) to pass through easily, heating the dark interior surfaces.
These heated surfaces then radiate long-wave thermal energy (heat). The glass lid is not transparent to this long-wave radiation, effectively trapping the heat inside and raising the temperature significantly—often up to 50°F above the melting point of wax.
The Melting and Separation Process
Old honeycombs or frames are placed inside the melter on a metal plate or mesh rack. This rack is positioned at an angle within the insulated box.
As the internal temperature rises, the beeswax melts and becomes liquid.
The Role of Gravity and Filtration
Due to the angled design of the interior rack, the molten wax naturally flows downwards via gravity.
It drips off the rack and passes through a simple filter, such as a mesh screen or sieve. This step separates the liquid wax from the "slumgum"—the collection of old cocoons, propolis, and other impurities left behind in old comb.
Collection and Solidification
The filtered, liquid wax finally drips into a collection bucket or pan at the lowest point of the melter. In some designs, this pan may contain water, which can help in the cleaning process.
Once the sun sets or the device is removed from the sun, the wax slowly cools and solidifies into a clean, usable block of yellow beeswax.
Key Design Features and Their Purpose
While the concept is simple, a few key components are critical to the melter's efficiency and success.
The Insulated Box
The main body of the melter is an insulated box. Its primary job is to minimize heat loss, ensuring that the captured solar energy is used effectively to melt the wax rather than dissipating into the surrounding air.
Optimized Sun Exposure
Many solar melters include a support that allows them to be tilted and rotated. This feature enables the operator to orient the melter directly towards the sun, maximizing solar energy capture throughout the day for more efficient melting.
Safety by Design
One of the most significant features is its inherent safety. With no electrical connections, heating elements, or fuel sources, the risk of fire or electrical shock is completely eliminated. Its operation relies solely on a natural, passive process.
Understanding the Trade-offs
While highly effective, a solar wax melter is a specialized tool with clear benefits and limitations that are important to consider.
Pro: Zero Operating Costs
The most obvious advantage is that it runs entirely on free energy from the sun. Once you have the device, there are no ongoing costs for electricity or fuel.
Pro: High-Quality Wax
The slow, gentle heating process is excellent for rendering wax. It avoids scorching or overheating, which can discolor the wax, often resulting in a very high-quality, clean final product.
Con: Weather Dependent
The device's performance is entirely reliant on strong, direct sunlight. It is ineffective on cloudy, overcast days and has limited use during winter months in many climates.
Con: Processing Speed
Compared to electric or gas-powered melters, a solar melter is slow. Processing a full batch can take several hours, depending on the intensity of the sun and the volume of material. It is not designed for rapid, on-demand processing.
Making the Right Choice for Your Goal
Deciding if a solar wax melter is right for you depends entirely on the scale of your operation and your priorities.
- If your primary focus is cost-effective and environmentally friendly wax rendering for a hobby or small-scale apiary: A solar melter is an unparalleled solution for its simplicity and efficiency.
- If your primary focus is high-volume, on-demand processing regardless of the weather: A solar melter may be insufficient, and you should consider an electric or fuel-powered alternative as your primary tool.
- If your primary focus is safety and minimal supervision: The "set it and forget it" nature of a solar melter, with no active heating elements, makes it the safest option available.
By harnessing a natural process, the solar wax melter empowers you to reclaim a valuable resource with remarkable simplicity.
Summary Table:
| Feature | Purpose | Benefit |
|---|---|---|
| Transparent Lid | Captures and traps solar energy | Creates a greenhouse effect for efficient heating |
| Angled Metal Rack | Holds wax comb for melting | Allows gravity to separate pure wax from impurities |
| Insulated Box | Minimizes heat loss | Maximizes internal temperature for effective melting |
| Filter System | Screens out debris (slumgum) | Produces high-quality, clean beeswax |
| Collection Pan | Receives filtered liquid wax | Enables easy recovery of reclaimed wax |
Ready to Reclaim Your Beeswax with Solar Power?
HONESTBEE supplies commercial apiaries and beekeeping equipment distributors with high-quality, wholesale-focused solar wax melters. Our equipment helps you reduce operational costs, enhance safety with zero electrical risks, and produce premium-grade wax using free solar energy.
Contact us today to explore our wholesale solutions and find the perfect solar wax melter for your operation!

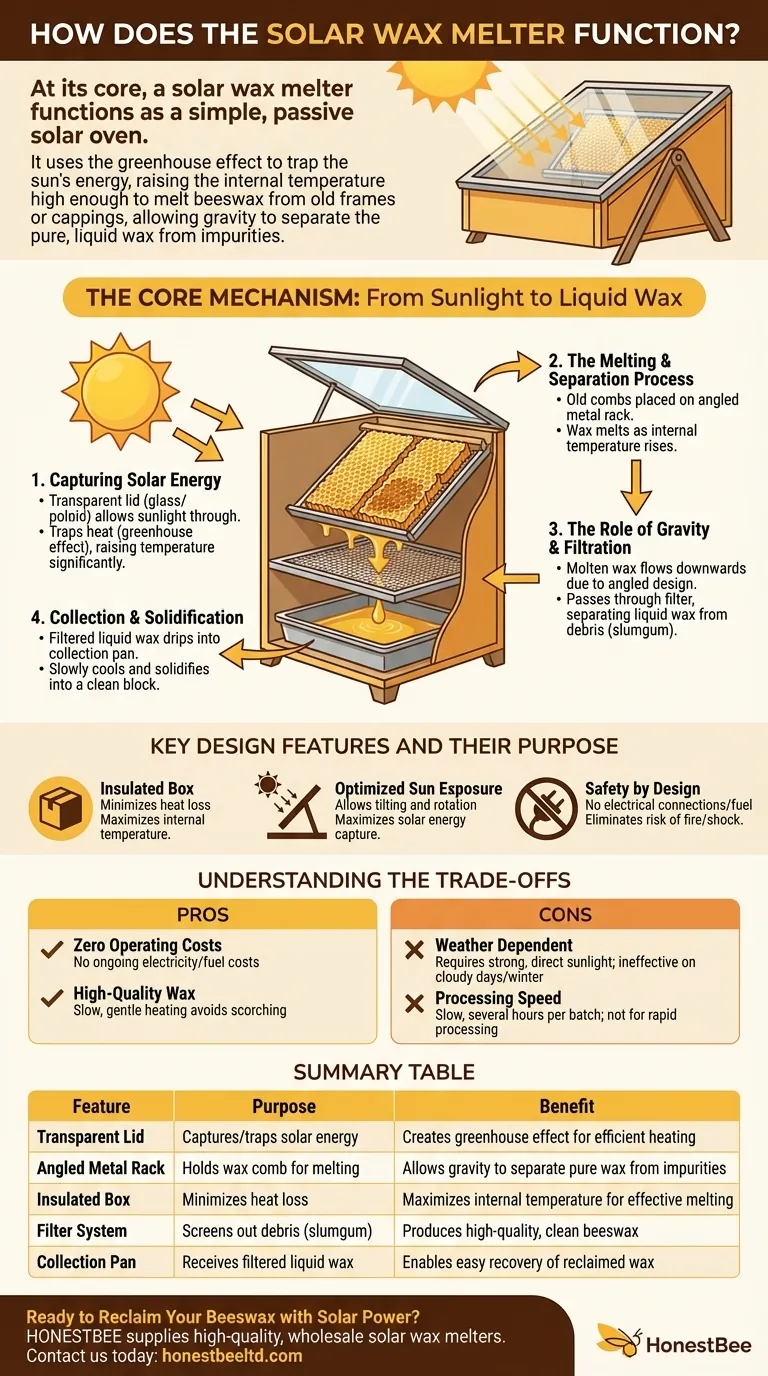

Visual Guide
