HONESTBEE Professional Frame Wiring Board and Jig

Frames & Accessories

HONESTBEE Professional Frame Wiring Board and Jig

Item Number : WT-6

Price varies based on specs and customizations


Material
Galvanized Steel
Compatible Frame
Langstroth frames
Compatible Frame Widths
42-49 cm
ISO & CE icon

Shipping:

Contact us to get shipping details Enjoy On-time Dispatch Guarantee.

Get Quote

HONESTBEE presents the Professional Frame Wiring Board and Jig, an indispensable tool engineered for high-efficiency frame preparation in commercial apiaries and for beekeeping equipment distributors. This robustly constructed jig streamlines the often laborious task of wiring beehive frames, ensuring consistent tension and perfectly aligned wires every time. Its durable metal build and thoughtful design make it a long-term investment for serious beekeeping operations.

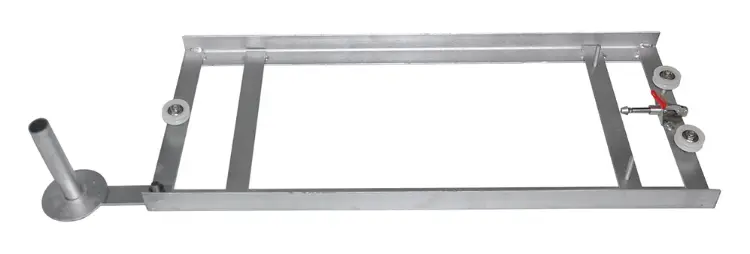

Frame Wiring Board

Design, Materials, and Construction

The HONESTBEE Frame Wiring Board is meticulously designed for functionality and longevity:

  • Robust Metal Construction: The main body of the jig is crafted from heavy-duty galvanized steel, providing a sturdy and stable platform that resists warping and wear even with continuous use.
  • Integrated Wire Spool Holder: Features a dedicated, conveniently positioned metal spindle and base for holding standard wire spools, allowing for smooth and unimpeded wire dispensing.
  • Smooth-Running Guide Rollers/Pulleys: Equipped with multiple durable guide rollers. These rollers ensure the wire is guided accurately through frame eyelets and around the frame edges with minimal friction, aiding in achieving even tension.

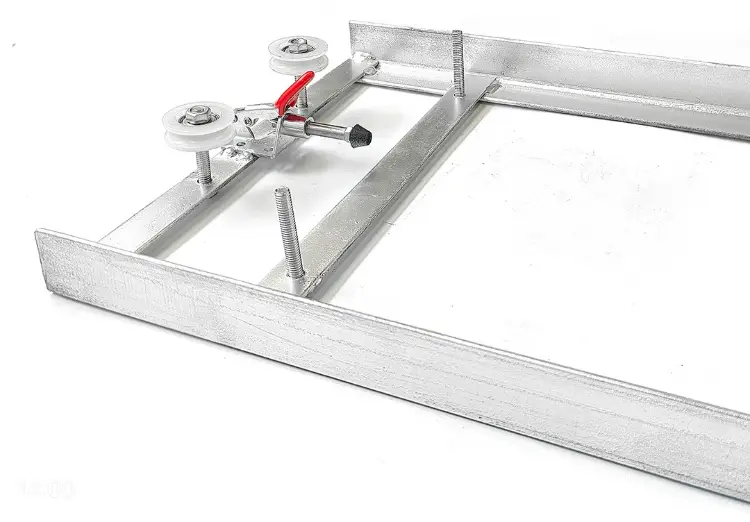

  • Secure Frame Clamping/Holding Mechanism: Includes fixed pins and potentially a quick-release toggle clamp to securely hold the wooden beehive frame in place during the wiring process, preventing movement and ensuring accuracy.
  • Efficient Tensioning System: The design facilitates easy manual tensioning by pulling wire from the spool, using the rollers as guides. The wire spool itself often provides a natural braking action to help maintain tension as the wire is secured.

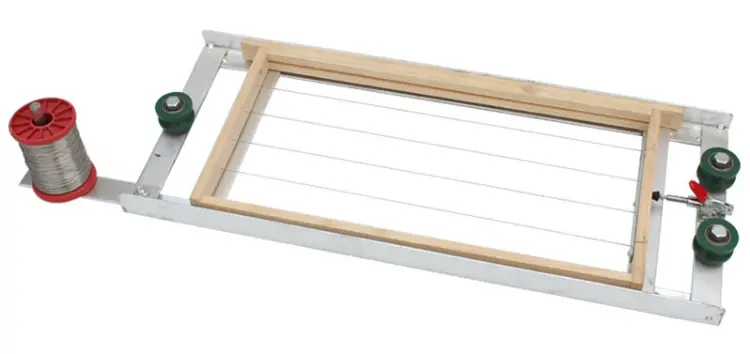

Frame Wiring Board

Dimensions and Specifications

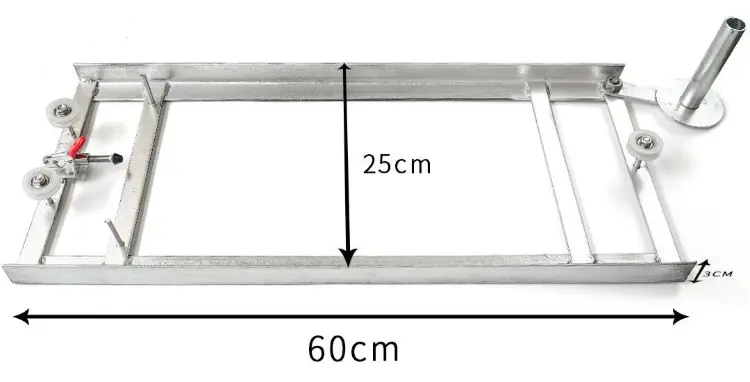

  • Overall Size (Length x Width x Height): Approximately 60 cm x 25 cm x 3 cm
  • Weight: Approximately 2.2 kg
  • Material: Galvanized Steel, with some nylon components for rollers.
  • Compatible Frame Widths: Approx. 42 cm to 49 cm
  • Compatible Frame: Langstroth full depth frames

(Please note: Dimensions, weight, and compatible frame sizes are approximate and may have slight manufacturing variances.)

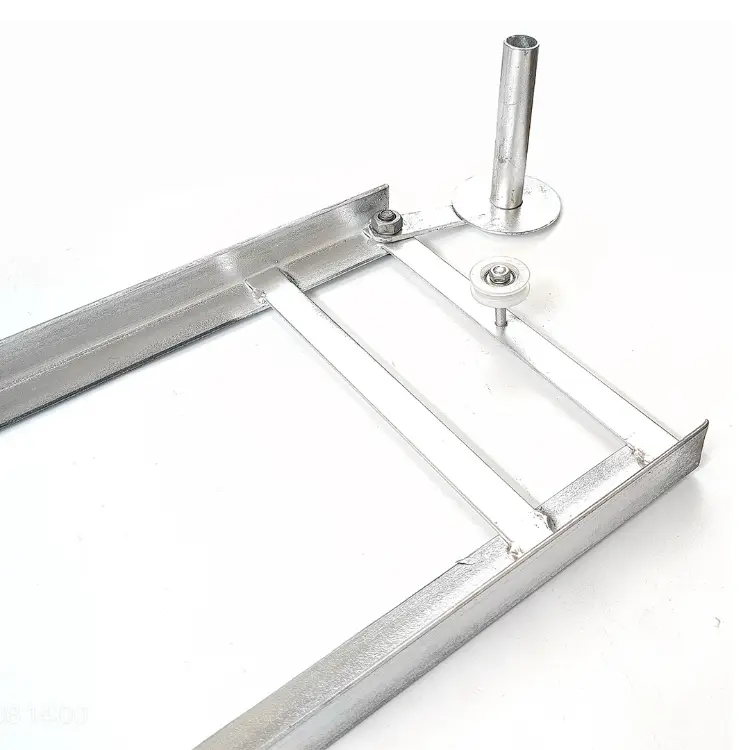

Frame Wiring Board

Functionality and Operation

The HONESTBEE Frame Wiring Board makes wiring frames a systematic and efficient process:

  1. Setup & Adjustment: Adjust the jig components (stops, threaded rods) to match the dimensions of the beehive frame being wired. Mount the wire spool onto the holder.
  2. Frame Placement: Securely place the empty wooden beehive frame into the jig, ensuring it's held firmly by the pins and/or clamp.
  3. Wire Threading: Thread the wire from the spool, through the frame's pre-drilled eyelets (or around nails), and around the designated guide rollers on the jig, following the desired wiring pattern.
  4. Tensioning: After threading each section or the entire wire, pull the wire taut using the main spool. The jig's design and rollers help maintain this tension.
  5. Securing Wire: Once the wire is fully threaded and tensioned, secure the ends of the wire to the frame using nails or by wrapping around frame eyelets.
  6. Release: Release the wired frame from the jig.

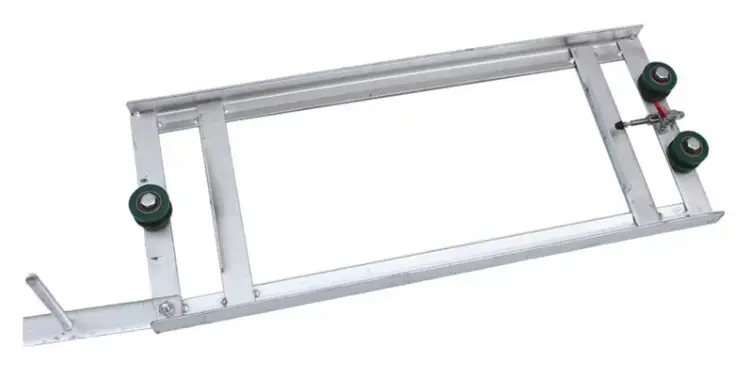

Frame Wiring Board

Advantages and Benefits

  • Increased Efficiency & Speed: Significantly reduces the time and effort required to wire frames compared to fully manual methods.
  • Consistent Wire Tension: Ensures all wires are uniformly taut, which is crucial for embedding foundation and preventing sag.
  • Professional & Durable Construction: Built to withstand the demands of commercial use, offering a long service life and excellent return on investment.
  • Improved Frame Quality: Results in perfectly wired frames that provide optimal support for foundation and encourage bees to draw straight, even comb.
  • Ease of Use: Simplifies a critical beekeeping task, making it accessible even for less experienced personnel after minimal training.

Frame Wiring Board

Application Scenarios

The HONESTBEE Professional Frame Wiring Board is ideal for:

  • Commercial Beekeeping Operations: Essential for preparing large quantities of frames efficiently and consistently.
  • Beekeeping Equipment Suppliers: For in-house assembly of pre-wired frames or for resale to beekeepers.
  • Queen Rearing Operations: Where numerous nuc frames or standard frames require meticulous preparation.
  • Beekeeping Cooperatives & Associations: As a shared resource for members.
  • Large-Scale Hobbyists: For those who manage a significant number of hives and value efficiency.

Frame Wiring Board

Value Proposition for HONESTBEE Wholesale Customers

For Commercial Beekeepers: This wiring board is a productivity multiplier. It directly translates to labor savings, improved frame quality, and ultimately, more efficient hive management. Its durability ensures it's a reliable workhorse for years to come.

For Beekeeping Equipment Distributors & Resellers: Offering the HONESTBEE Professional Frame Wiring Board allows you to provide your customers with a high-quality, professional-grade solution to a common beekeeping challenge. It's a product that demonstrates clear value, appealing to serious beekeepers looking to optimize their operations, thereby enhancing your reputation as a supplier of robust and practical beekeeping tools.

Product Summary

Feature Description Benefit
Material Heavy-Duty Galvanized Steel Durability, Stability, Longevity, Professional Grade
Design Jig with Spool Holder, Guide Rollers, Adjustable Frame Stops/Clamp Efficient Workflow, Secure Frame Holding, Smooth Wire Travel, Versatility
Primary Function Holding and Guiding Wire for Beehive Frame Preparation Fast, Consistent, and Taut Wiring
Target User Commercial Beekeepers, Equipment Suppliers, Large-Scale Hobbyists Professional Tool for High-Volume Frame Preparation
Key Attributes Durable, Efficient, Adjustable, Professional, Consistent Results Long Service Life, Time & Labor Saving, Adaptable, High-Quality Output
Size / Weight Approx. 60cm x 25cm x 3cm / 2.2kg Stable Work Platform, Manageable Size

Streamline Your Frame Preparation with HONESTBEE

Elevate your beekeeping efficiency with the HONESTBEE Professional Frame Wiring Board and Jig. This tool is an investment in quality, speed, and consistency for any serious beekeeping endeavor.

Contact HONESTBEE today for wholesale inquiries, volume pricing, and to equip yourself or your customers with this essential, high-performance frame wiring solution!
