Honey Extractor

32 Frame Commercial Electric Honey Extractor for Beekeeping and Honey Production

Item Number : HE-32E

Price varies based on specs and customizations

Capacity: 32 Standard Langstroth Frames (Shallow, Medium, or Deep)
Material: Full Food-Grade Stainless Steel (Barrel, Reel, Stand, Valve)
Motor: 750W Horizontal Motor with Gearbox

View Specs Request Your Custom Quote 👋

Request Quote

Live Chat View Specs

Why Choose Us

Easy ordering process, quality products, and dedicated support for your business success.

Easy Process Quality Assured Dedicated Support

Unlock peak efficiency in your large-scale honey harvesting with the HONESTBEE 32-Frame Commercial Electric Honey Extractor. This industrial-grade machine is the definitive solution for commercial beekeepers and honey producers who require maximum throughput, durability, and automated control. Built entirely from heavy-duty stainless steel, this extractor is engineered to be the powerhouse of your extraction line.

Electric Honey Extractor

Detailed Product Description

Designed for non-stop performance during the busiest harvesting seasons, this honey extractor combines massive capacity with precision engineering and robust construction.

Electric Honey Extractor

Industrial-Grade Stainless Steel Construction

The entire unit, from the mammoth drum to the frame and outlet valve, is constructed from high-quality, food-grade stainless steel. The drum features seamless welds and a polished interior for superior hygiene and effortless cleaning. It is mounted on a robust, fully welded stainless steel stand, engineered to provide a stable, vibration-free foundation even when operating with a full load of honey and frames.

Inner Barrel Dimensions: 98 cm (Diameter) x 80 cm (Height)

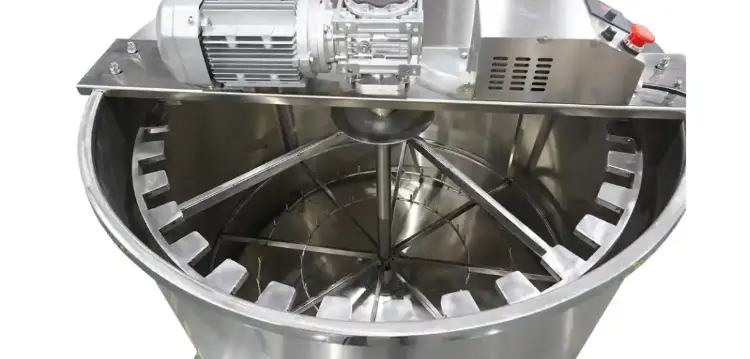

High-Capacity 32-Frame Radial Reel

At the heart of this machine is a heavy-duty, 32-frame stainless steel radial reel. The radial design is the pinnacle of efficiency, extracting honey from both sides of the frames simultaneously without the need for stopping and turning. This feature dramatically reduces labor and processing time, making it essential for high-volume operations.

Electric Honey Extractor

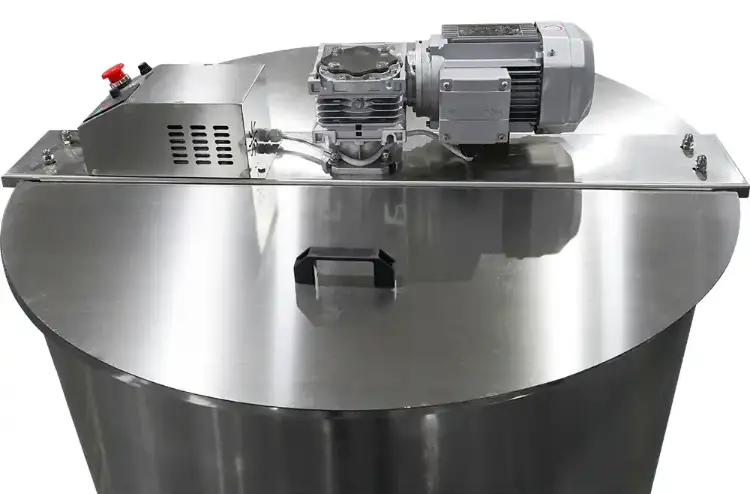

Powerful and Programmable Electric Drive

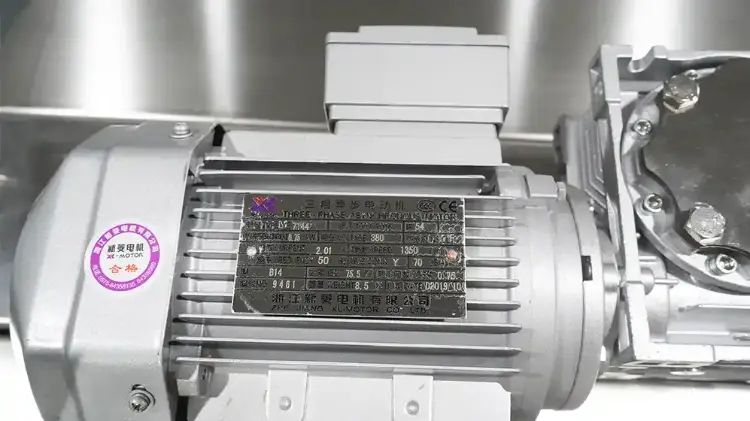

This honey extractor is driven by a powerful 750W horizontal motor, paired with a high-torque gearbox to handle the immense weight of 32 fully-loaded frames. The entire drive system is controlled by a sophisticated Variable Frequency Drive (VFD) housed in a stainless steel control box.

Electric Honey Extractor

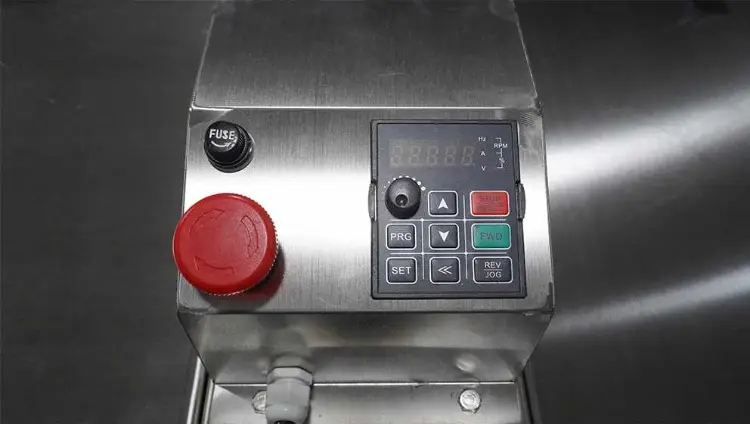

Control Panel Features:

Digital Display: Provides clear readouts of speed (RPM) or frequency (Hz).
Variable Speed Control: A precision dial allows for complete control over the extraction speed, from a slow start to ramp up to full power.
Programmable Cycles: Automate your entire extraction process with programmable settings for speed, duration, and direction.
Forward & Reverse: Easily switch the direction of rotation.
Safety First: Equipped with a prominent red emergency stop button and an external fuse for maximum operator safety.

Electric Honey Extractor

Professional-Grade Components

Hinged Stainless Steel Lids: The two-piece lid allows for easy access to the reel for loading and unloading while keeping the drum covered and clean during operation.

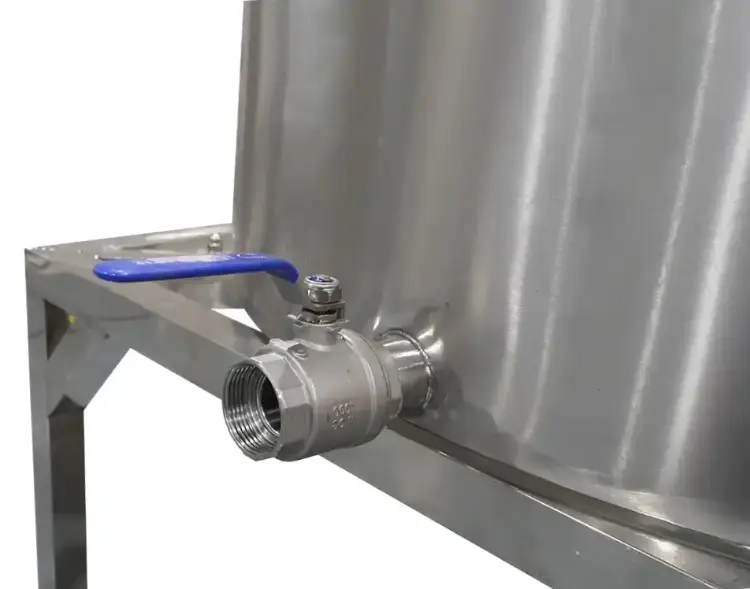

Industrial Ball Valve Outlet: Unlike smaller honey gates, this unit features a large-diameter stainless steel ball valve. This ensures rapid, clog-free draining of honey, which is critical for maintaining a continuous workflow.

Key Advantages

Maximum Throughput: The 32-frame radial capacity allows for the fastest possible processing of honey supers, directly addressing the biggest bottleneck in commercial harvesting.
Automated & Precise Control: The VFD controller allows for fully automated, repeatable extraction cycles, ensuring consistent results and preventing comb blowouts.
Unmatched Durability & Hygiene: The complete stainless steel construction is built for a lifetime of heavy use and meets the highest standards of food safety and cleanability.
Labor-Saving Design: By automating the extraction process and eliminating the need to flip frames, this machine significantly reduces the physical labor and time required per super.

Applications and Value Proposition

For Beekeeping Supply Dealers:

The HONESTBEE 32-Frame Electric Honey Extractor is a premium, high-ticket item that establishes your company as a serious supplier for commercial apiaries. Stocking this machine demonstrates your capacity to equip large-scale honey producers, attracting high-value clients and setting you apart from competitors focused on the hobbyist market.

For Commercial Beekeeping Operations:

This honey extractor is a strategic investment in your business's productivity and profitability. It directly translates to lower labor costs, faster processing times, and the ability to scale your operation without being limited by extraction capacity. Its robust build ensures a reliable return on investment over countless harvest seasons.

Product Specifications Summary

Feature	Specification & Benefit
Product Type	32-Frame Commercial Electric Radial Honey Extractor
Capacity	32 Standard Langstroth Frames (Shallow, Medium, or Deep)
Material	Full Food-Grade Stainless Steel (Barrel, Reel, Stand, Valve)
Motor	750W Horizontal Motor with Gearbox
Controller	Variable Frequency Drive (VFD) with Programmable Settings
Inner Barrel Diameter	98 cm
Inner Barrel Height	80 cm
Honey Outlet	Large-Diameter Stainless Steel Ball Valve
Safety Features	Emergency Stop Button, External Fuse

Power Your Commercial Honey Harvest with HONESTBEE

Equip your extraction facility with the ultimate tool for speed, capacity, and reliability. The HONESTBEE 32-Frame Electric Honey Extractor is engineered to meet and exceed the demands of the most serious honey producers. Contact our wholesale team today to learn more about pricing, distribution opportunities, and how you can make this powerhouse the center of your product line or operation.

FAQ

What Is The Principle Of A Solar Beeswax Melter?

A solar beeswax melter uses sunlight to melt beeswax, creating clean wax without additional energy sources. It typically consists of a container with a glass or plastic covering and a small inner container where melted wax collects. The heat from the sun melts the wax, which then drips into a pan of water, often passing through a filter.

What Are Queen Marking Pens Used For?

Queen marking pens are used to mark queen bees for easy identification in beekeeping. They feature water-based, non-toxic paint that lasts the queen's lifetime.

What Are The Key Features Of Bee Shoes?

Bee shoes should have protective material, comfort and support, slip resistance, breathability, durability, ease of cleaning, and proper coverage to ensure safety, comfort, and practicality while working in the bee yard.

What Are The Advantages Of Using A Solar Beeswax Melter?

The benefits of using a solar beeswax melter include sustainability, as it reduces the energy footprint by harnessing renewable solar energy; high-quality wax, as the slow and controlled melting process ensures clean and pure wax free from contaminants; and versatility, as it is compatible with frames from different hive systems and can be expanded for larger volumes of wax. Additionally, it is environmentally friendly, requires no energy, and is low maintenance, making it suitable for beginners.

How Do You Use A Queen Marking Pen?

To use a queen marking pen, you need to prime it by shaking and pressing the pen to get the paint to the tip before marking the queen bee.

Why Is Slip Resistance Important In Bee Shoes?

Slip resistance is crucial in bee shoes to prevent accidents and ensure stability while working in potentially slippery environments like bee yards.

What Are The Applications Of A Solar Beeswax Melter?

A solar beeswax melter is used to melt beeswax using the heat of the sun, especially useful for beekeepers with large quantities of raw wax. The wax is placed in a pan inside the melter, and the melted wax is collected in a tray as it cools and solidifies. This purified wax can then be reused in various applications such as candles and cosmetics.

What Are The Advantages Of Using Queen Marking Pens?

The advantages of using queen marking pens include their non-toxic, water-based paint that is safe for the queen bee and lasts her lifetime, making them a durable and reliable tool for beekeepers.

What Materials Are Used In Bee Shoes For Protection?

Bee shoes often use thick PVC material to provide protection against stings and other hazards in the bee yard.

What Are The Main Features Of A Solar Beeswax Melter?

The main features of a solar beeswax melter include high-strength double-glazed glass that reaches up to 120°C under direct sunlight, a stainless steel plate for uniform heat distribution, and a durable wax tray that provides ample space for melting wax from hive frames. These features ensure efficient, even melting and easy cleaning.

Are Queen Marking Pens Safe For Bees?

Yes, queen marking pens are safe for bees as they use water-based, non-toxic paint that is specifically designed for marking queen bees without harming them.

How Do Bee Shoes Ensure Comfort And Support?

Bee shoes are designed with comfort and support in mind, featuring breathable materials and ergonomic designs to reduce fatigue during long periods of wear.

Why Is Breathability Important In Bee Shoes?

Breathability in bee shoes helps to keep feet cool and dry, enhancing comfort and preventing discomfort during extended use.

What Makes Bee Shoes Durable?

Bee shoes are made from durable materials like thick PVC, which resist wear and tear, ensuring they last longer even in tough working conditions.

How Easy Are Bee Shoes To Clean?

Bee shoes are designed for ease of cleaning, often featuring smooth surfaces and materials that can be wiped down or washed quickly.

What Is The Importance Of Proper Coverage In Bee Shoes?

Proper coverage in bee shoes protects the feet and lower legs from bee stings and other environmental hazards, ensuring complete safety while working.

View more faqs for this product
