HONESTBEE 72 Frame Industrial Electric Honey Extractor for Beekeeping

Name: HONESTBEE 72 Frame Industrial Electric Honey Extractor for Beekeeping
Brand: HonestBee
SKU: HE-72E
Rating: 4.82 (10 reviews)

Item Number : HE-72E

Price varies based on specs and customizations

Capacity: 72 Standard Langstroth Frames (Shallow, Medium, or Deep)
Motor Power: 1100W (1.1 kW)
Voltage: 220V 50Hz (other configurations available on request)

Get Quote Request Your Custom Quote 👋

Request Quote

Live Chat Get Quote

Why Choose Us

Reliable Partner

Easy ordering process, quality products, and dedicated support for your business success.

Easy Process Quality Assured Dedicated Support

The HONESTBEE 72-Frame Industrial Electric Honey Extractor represents the pinnacle of high-volume honey processing. Engineered as the ultimate solution for the largest commercial apiaries and honey packing facilities, this machine combines immense capacity with automated precision and rugged durability. It is designed to be the central powerhouse of a modern, efficient extraction line, capable of handling the most demanding harvest schedules with ease.

Electric Honey Extractor

Detailed Product Description

This honey extractor is built for industrial-scale operations, where throughput, reliability, and hygiene are paramount. Every component is over-engineered to deliver uncompromising performance.

Electric Honey Extractor

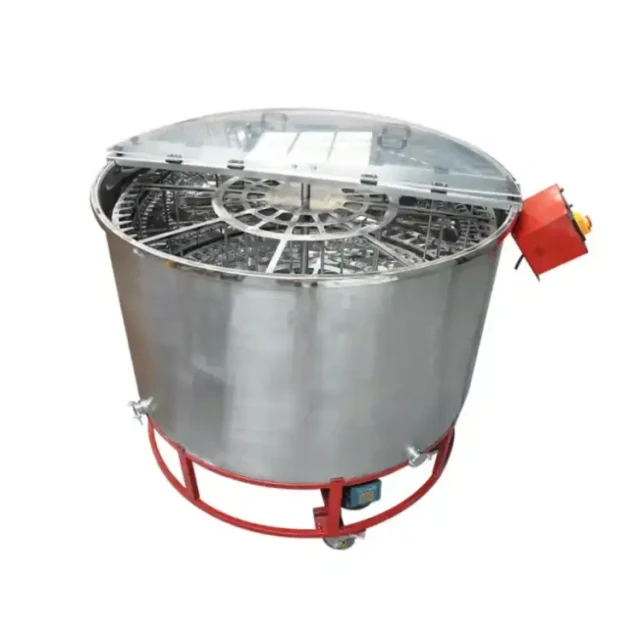

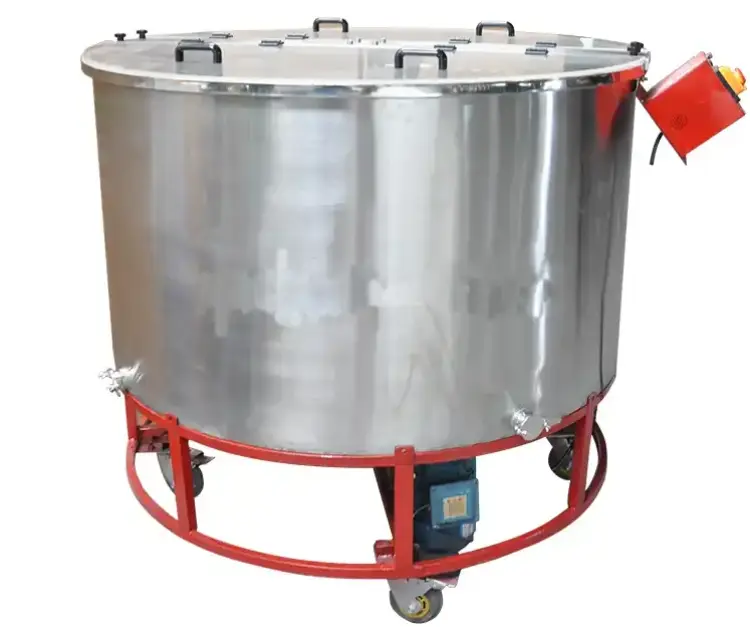

Massive Stainless Steel Construction

The entire unit is built around a colossal, food-grade stainless steel drum with seamless welds for maximum strength and easy sanitation. The enormous size allows it to hold a significant amount of honey before draining is required. The drum is mounted on a heavy-duty, powder-coated steel frame with industrial-grade caster wheels, providing both rock-solid stability during operation and surprising mobility for easy positioning and cleaning within your facility.

Electric Honey Extractor

Outer Barrel Diameter: 135 cm
Inner Barrel Diameter: 130 cm
Barrel Height: 75.5 cm

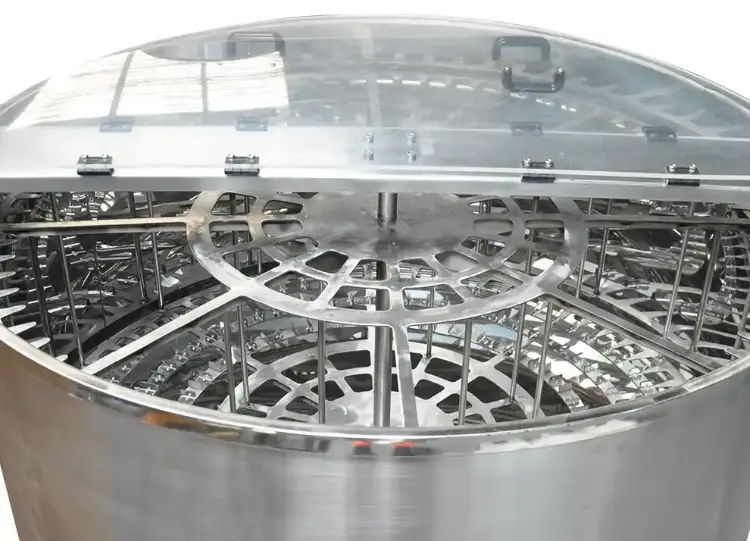

72-Frame High-Throughput Radial Reel

At its core, this honey extractor features a mammoth 72-frame stainless steel radial reel. This design is the key to its incredible efficiency, extracting honey from both sides of the frames simultaneously as it spins. This eliminates the labor-intensive process of stopping to flip frames, drastically reducing extraction time and maximizing the number of supers that can be processed per hour.

Inner Reel Diameter: 125 cm

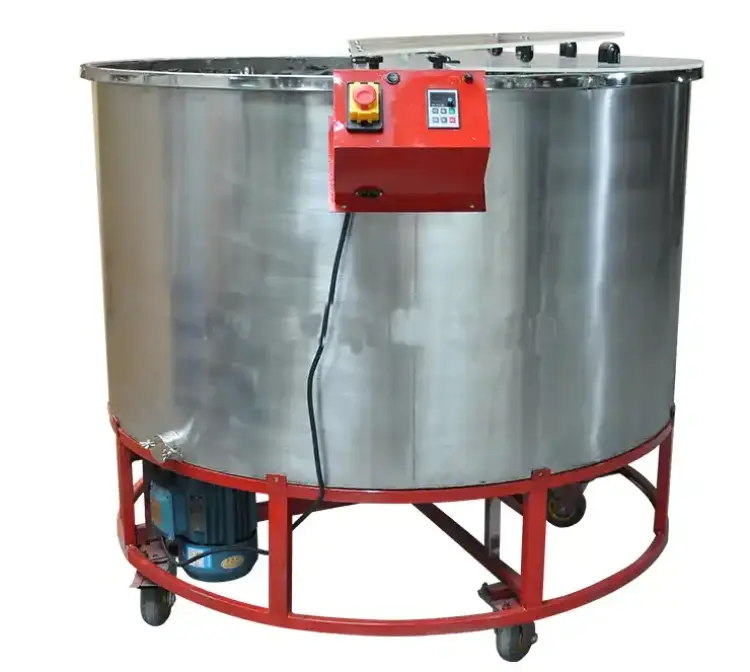

Powerful, Automated Electric Drive System

Driving this industrial machine is a powerful, bottom-mounted 1100W electric motor, managed by a high-capacity 1500W inverter (VFD). This system provides smooth, controllable power, capable of handling the immense weight of 72 fully-loaded honey frames.

Electric Honey Extractor

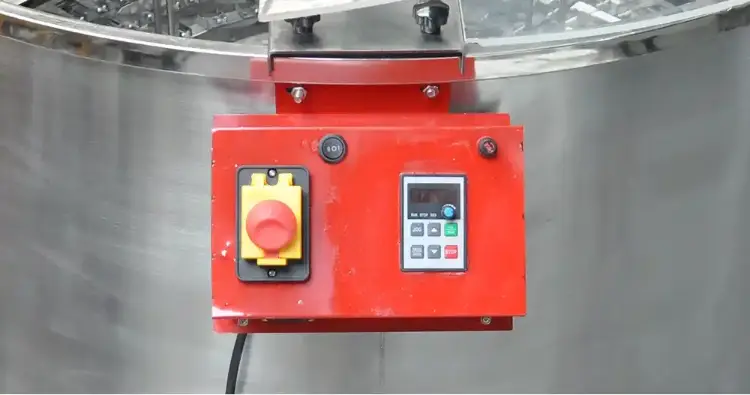

Advanced Control Panel:

Variable Speed Control: The digital VFD controller allows for precise, step-less adjustment of the rotational speed. This is crucial for starting slowly to prevent comb blowouts and ramping up to maximum speed for efficient extraction.
Programmable Cycles: Automate the entire process by setting the desired speed and duration for fully repeatable, hands-off operation.
Safety Features: Housed in a durable red metal enclosure, the control panel includes a prominent emergency stop/power switch for immediate shutdown.

Electric Honey Extractor

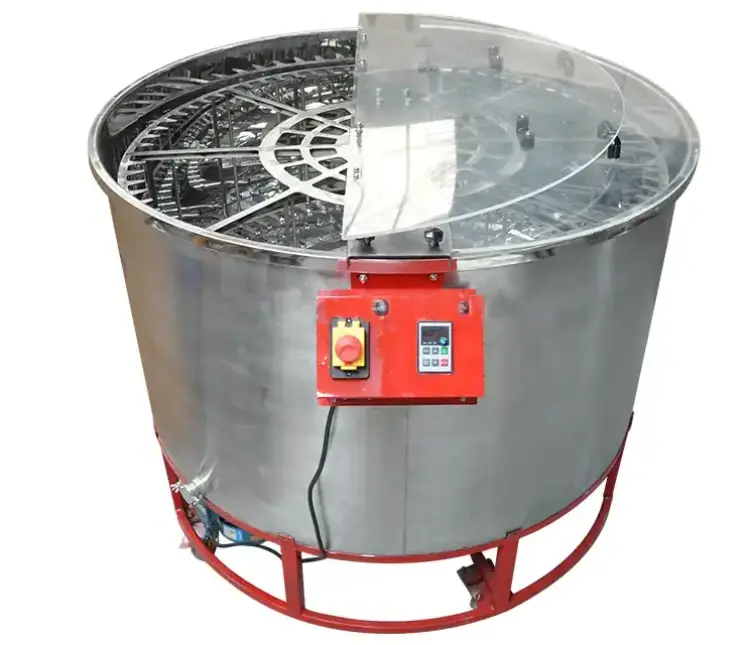

Functional and Professional Design

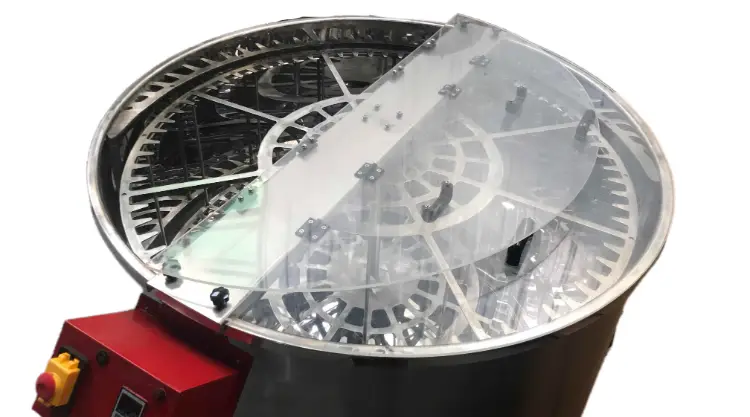

Transparent Acrylic Lid: The two-piece, hinged acrylic lid allows for safe observation of the extraction process without stopping the machine, while keeping the honey protected from airborne contaminants.
Dual Honey Gates: Equipped with two stainless steel honey gate outlets, allowing for rapid and complete draining of the vast quantities of honey this machine can extract.
Mobile Platform: The integrated caster wheels allow this massive honey extractor to be moved easily for cleaning or repositioning in your extraction line.

Electric Honey Extractor

Key Advantages

Unprecedented Throughput: The 72-frame radial capacity is designed for the largest commercial operations, revolutionizing workflow and dramatically increasing processing speed.
Automated Efficiency: The programmable VFD controller reduces labor, ensures consistent extraction, and protects valuable honeycombs from damage.
Industrial Durability & Hygiene: The full stainless steel construction of all food-contact parts ensures a long operational life and meets the highest standards of food safety.
Mobile and Versatile: Despite its immense size, the wheeled frame provides excellent mobility, a unique feature for a honey extractor of this scale.

Applications and Value Proposition

For Beekeeping Supply Dealers:

The HONESTBEE 72-Frame Extractor is a flagship product that positions your company as a premier supplier for the commercial beekeeping industry. Offering this machine demonstrates your ability to cater to the needs of the largest honey producers, attracting high-value clients and establishing your brand as a leader in industrial-grade beekeeping equipment.

For Large-Scale Commercial Beekeepers:

This honey extractor is a strategic investment that directly impacts your bottom line. It enables a massive increase in operational scale, significantly reduces labor costs per pound of honey, and shortens the entire harvest-to-barrel timeline. It is the essential centerpiece for any operation looking to achieve maximum efficiency and profitability.

Product Specifications Summary

Feature	Specification & Benefit
Product Type	72-Frame Industrial Electric Radial Honey Extractor
Capacity	72 Standard Langstroth Frames (Shallow, Medium, or Deep)
Material	Food-Grade Stainless Steel (Barrel, Reel), Powder-Coated Steel (Frame)
Lid	2-Piece Transparent Acrylic
Motor Power	1100W (1.1 kW)
Controller	1500W (1.5 kW) Variable Frequency Drive (VFD) with Programmable Settings
Voltage	220V 50Hz (other configurations available on request)
Inner Barrel Diameter	130 cm
Barrel Height	75.5 cm
Mobility	Frame mounted on industrial caster wheels

Define the Future of Your Honey Production with HONESTBEE

For commercial honey producers and equipment suppliers ready to operate at the highest level of efficiency, the HONESTBEE 72-Frame Electric Honey Extractor is the ultimate investment. Contact our B2B sales team today to discuss wholesale pricing, shipping logistics, and partnership opportunities. Revolutionize your honey extraction line with HONESTBEE.
