Frame Punching Hole Puncher Machine for Bee Frame Producing Line

Frame making machine

Frame Punching Hole Puncher Machine for Bee Frame Producing Line

Item Number : BFHP-1

Price varies based on specs and customizations


Production Capacity
1800 pcs/hour
Allowable Processing Length
145–250 mm
Punch Spacing
40–45 mm
ISO & CE icon

Shipping:

Contact us to get shipping details Enjoy On-time Dispatch Guarantee.

Get Quote

Application

The Precision Bee Frame Hole Punching Machine is specifically designed for creating precise holes in the end bars of bee frames, making it an essential tool for various industries involved in beekeeping equipment production. Its primary application includes:

  • Beekeeping Supply Manufacturers: Streamline the production of bee frames with consistent hole alignment and high-speed operation.
  • Large-Scale Apiaries: Produce in-house frames efficiently, ensuring durability and precision for long-term use.
  • Woodworking Shops: Expand into apiculture equipment manufacturing with a machine that offers versatility and reliability.

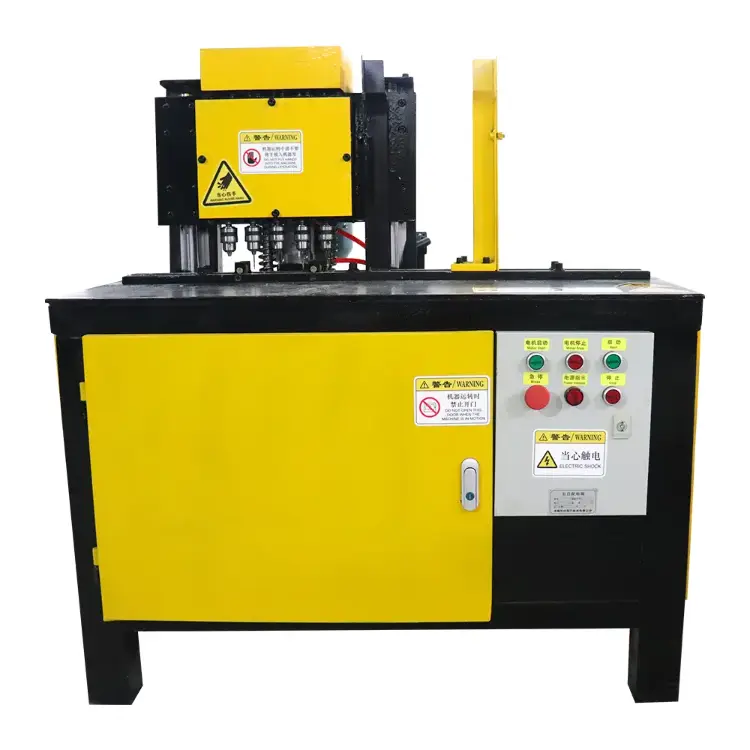

bee frame making machine

This machine is engineered to handle industrial-scale production, making it ideal for facilities that require high output without compromising on quality. Whether you're producing standard or custom-sized frames, this machine accommodates end bars ranging from 145–250 mm, ensuring flexibility for diverse design requirements.

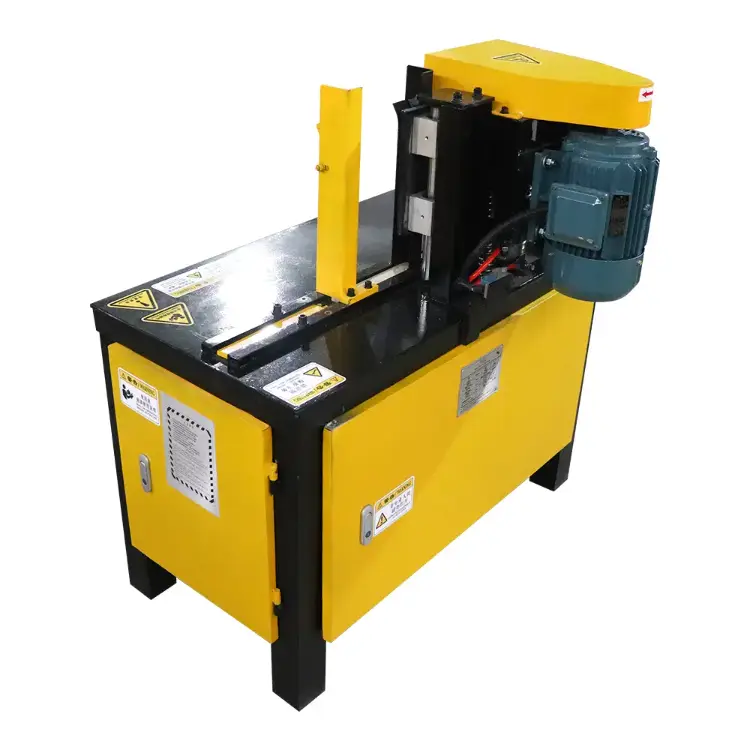

bee frame making machine

Feature

The Precision Bee Frame Hole Punching Machine is packed with advanced features that enhance its performance and usability:

  • Dual-Motor Power System:

    • Motor I: 3 kW, 380V, 50 Hz – Drives the punching mechanism for heavy-duty performance.
    • Motor II: 2.2 kW, 380V, 50 Hz – Powers the feeding and positioning system for seamless operation.
  • Pneumatic Precision:

    • Operates with 0.7 MPa inlet pressure (requires an air compressor, sold separately).
    • Delivers clean, uniform holes with minimal burrs, ensuring smooth assembly of bee frames.
  • Adjustable Punch Spacing:

    • Customizable hole spacing between 40–45 mm to meet diverse frame design requirements.
  • Versatile Processing Length:

    • Accommodates end bars ranging from 145–250 mm, suitable for standard and custom-sized frames.
  • High-Speed Production:

    • 1,800 pieces/hour capacity – Optimize output for large-scale manufacturing demands.
  • Durable Construction:

    • Heavy-duty steel frame and hardened punch heads for long-term reliability in demanding environments.

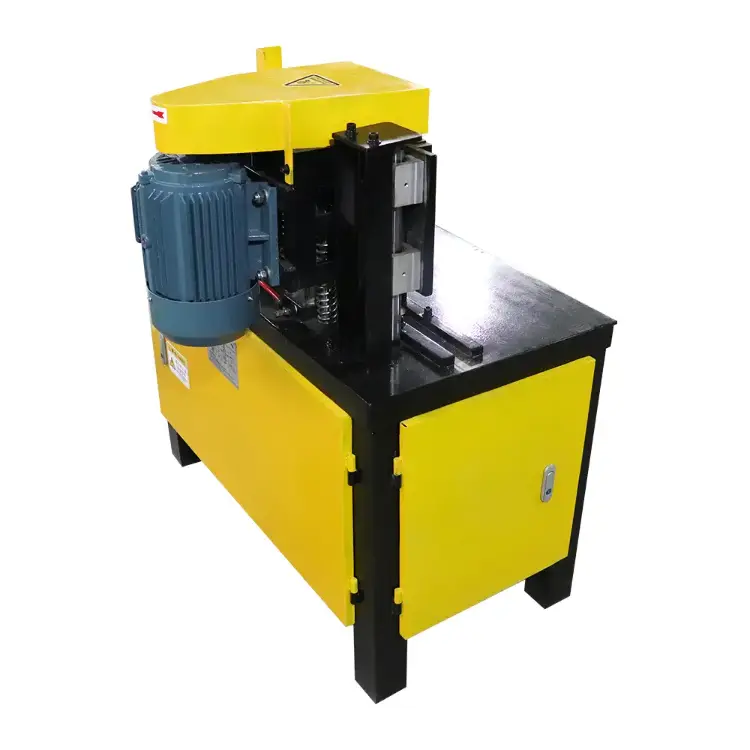

bee frame making machine

Principle

The Precision Bee Frame Hole Punching Machine operates on a combination of mechanical and pneumatic principles to deliver high efficiency and precision:

  • Mechanical Operation:

    • The machine utilizes a dual-motor system where Motor I drives the punching mechanism, ensuring robust and consistent hole punching. Motor II powers the feeding and positioning system, allowing for smooth and accurate placement of end bars.
  • Pneumatic Operation:

    • The machine requires an air compressor to operate at 0.7 MPa inlet pressure. This pneumatic system ensures that the punching process is clean and precise, minimizing burrs and ensuring smooth assembly of bee frames.
  • Adjustable Parameters:

    • The machine allows for adjustable punch spacing (40–45 mm) and accommodates end bars of varying lengths (145–250 mm), providing flexibility for different frame designs.
  • High-Speed Production:

    • With a production capacity of 1,800 pieces/hour, the machine is designed for industrial-scale production, ensuring high output without compromising on quality.

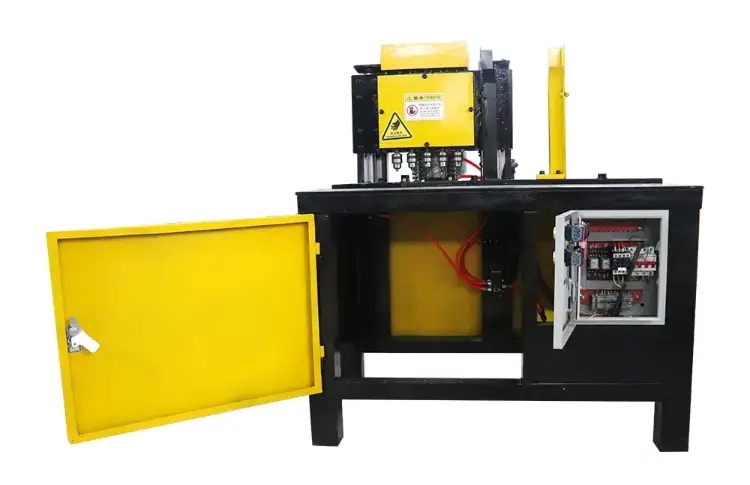

bee frame making machine

Advantage

The Precision Bee Frame Hole Punching Machine offers numerous advantages that make it a valuable addition to any production line:

  • High Efficiency:

    • Boost productivity with rapid, automated hole punching, achieving a production capacity of 1,800 pieces/hour.
  • Precision Engineering:

    • Ensure consistent hole alignment for seamless frame assembly, reducing the need for manual adjustments.
  • Low Maintenance:

    • Rugged design reduces wear and tear, lowering operational costs and minimizing downtime.
  • Easy Integration:

    • Compatible with existing production lines and workflows, making it easy to incorporate into your manufacturing process.
  • Customization Options:

    • Tailored solutions to adapt the machine to your specifications, including adjustable punch head configurations, custom processing lengths, and integration with automation systems.
  • Durable Construction:

    • Heavy-duty steel frame and hardened punch heads ensure long-term reliability, even in demanding environments.

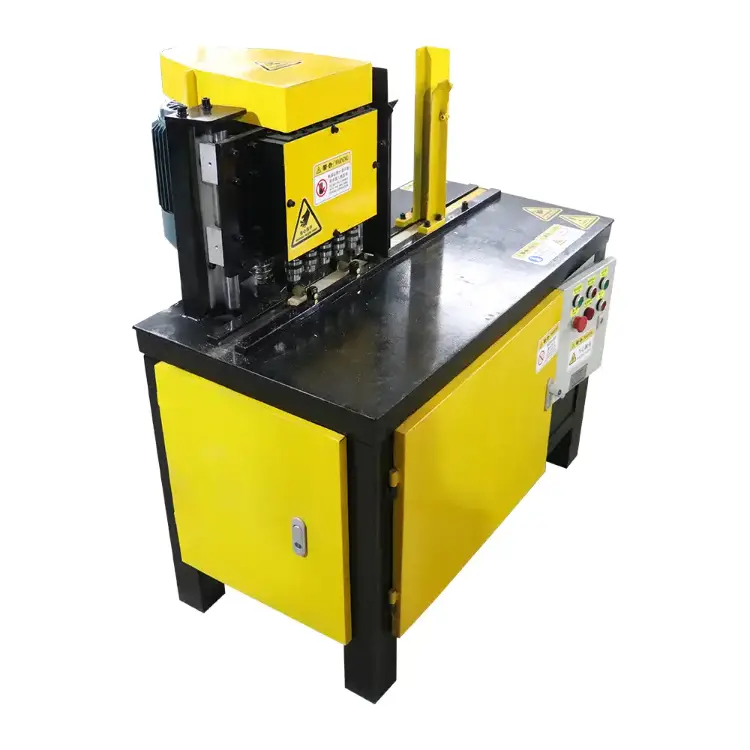

bee frame making machine

Equip your production line with a machine built for speed, accuracy, and durability. Contact us to discuss your requirements, request a demo, or customize this solution for your facility. Let’s build the future of beekeeping tools together!

Technical specifications

Parameter Specification
Application Making the holes in the end bars
Motor I 3 kW, 380 V, 50 Hz
Motor II 2.2 kW, 380 V, 50 Hz
Inlet Pressure 0.7 MPa
Punch Spacing 40–45 mm
Allowable Processing Length 145–250 mm
Production Capacity 1800 pcs/hour
Air Compressor Required Yes

FAQ

What Are The Main Types Of Hole Punchers For Bee Frames?

The main types of hole punchers for bee frames include the Mini Desktop Bee Hive Frame Forming Making Machine, the Frame Punching Hole Puncher Machine, and the Frame Eyelets Assembly Machine. Each type is designed to cater to specific needs in the bee frame production process.

What Is A Frame Machine?

A frame machine is a specialized piece of equipment used in beekeeping to automate the production and assembly of bee frames. These machines can perform various tasks such as forming, stapling, punching holes, and fitting eyelets into bee frames, making the process more efficient and precise.

What Are The Main Applications Of Beekeepers Tools?

Beekeepers tools are essential for various tasks such as hive inspections, honey extraction, and frame cleaning. They include items like veils and hats for facial protection, hive tools for opening sealed hives, and frame rests for convenience during inspections. Additionally, tools like the BeeConnected app help manage pollination agreements and related activities.

What Are The Applications Of Hole Punchers In Beekeeping?

Hole punchers are essential in beekeeping for creating precise holes in bee frames, which are necessary for assembling and maintaining hive structures. They are used in the production of Langstroth and Dadant size frames, ensuring efficiency and durability in beekeeping operations.

What Are The Advantages Of Using A Bee Frame Making Machine?

The bee frame making machine allows users to quickly and easily form bee frames for bees and honeycombs. Its compact size makes it easy to store and transport.

What Are The Main Types Of Frame Machines?

The main types of frame machines include the Semi-Auto Bee Frame Assembly and Stapling Machine, Mini Desktop Bee Hive Frame Forming Making Machine, Frame Punching Hole Puncher Machine, and Frame Eyelets Assembly Machine. Each type is designed for specific tasks in the bee frame production process.

What Types Of Tools Are Commonly Used By Beekeepers?

Common tools used by beekeepers include queen marking tubes and catchers for safe queen bee handling, goatskin leather gloves for sting protection, stainless steel hive tools for hive maintenance, and bee brushes for gentle bee removal. Other essential tools include beekeeping suits, hats with veils, and hive scrapers for efficient hive management.

What Are The Advantages Of Using A Hole Puncher For Bee Frames?

Using a hole puncher for bee frames offers several advantages, including high-speed production, precision in hole placement, and customization options to fit specific beekeeping needs. These machines are durable and designed to optimize the efficiency of beekeeping supply manufacturers.

What Are The Main Types Of Bee Frame Making Machines?

The main types of bee frame making machines include the Semi-Auto Bee Frame Assembly and Stapling Machine, Mini Desktop Bee Hive Frame Forming Making Machine, Frame Punching Hole Puncher Machine, and Frame Eyelets Assembly Machine.

What Are The Advantages Of Using Beekeepers Tools?

Using beekeepers tools offers numerous benefits, including enhanced safety during hive inspections, efficient hive management, and protection against bee stings. These tools also facilitate tasks like honey extraction and frame cleaning, making beekeeping more productive and enjoyable. Additionally, beekeeping contributes to biodiversity, food production, and global ecosystems, while providing economic value and opportunities for family bonding.

How Does A Frame Punching Hole Puncher Machine Work?

A Frame Punching Hole Puncher Machine operates by precisely punching holes into bee frames at high speeds. It is designed for efficiency and can be customized to meet the specific requirements of beekeeping supply manufacturers, ensuring consistent and reliable hole placement.

What Are The Applications Of Bee Frame Making Machines?

Bee frame making machines are primarily used in beekeeping and honey production to efficiently create durable and reliable hive frames. They are ideal for beekeeping supply manufacturers and beekeepers looking to streamline frame production.

What Are The Advantages Of Using A Frame Machine?

The advantages of using a frame machine include increased efficiency and precision in bee frame production. These machines can automate repetitive tasks, reduce manual labor, and ensure consistent quality. Additionally, they can handle large volumes of production, making them ideal for beekeeping supply manufacturers.

What Features Should Good Beekeeping Gloves Have?

Good beekeeping gloves should be made of durable materials like sheepskin leather to protect against bee stings and heat. They should be nimble enough to work between frames, extend up to the elbow, and have a cinched end to keep bees out. This ensures both safety and comfort during hive inspections and other beekeeping activities.

What Are The Applications Of Frame Machines?

Frame machines are primarily used in the beekeeping industry for the production and assembly of bee frames. They are essential for manufacturers and beekeepers who need to produce large quantities of frames efficiently and with high precision. These machines are also used in honey production and beekeeping supply manufacturing.

Why Is Beekeeping Considered A Rewarding Practice?

Beekeeping is considered rewarding because it benefits biodiversity, food production, and global ecosystems. It offers economic value through pollination and job creation, supports local gardens, increases food for wildlife, and produces natural products like honey and beeswax. Additionally, beekeeping is an engaging hobby that can be profitable, reduces stress, and provides opportunities for family bonding and making new friends.
