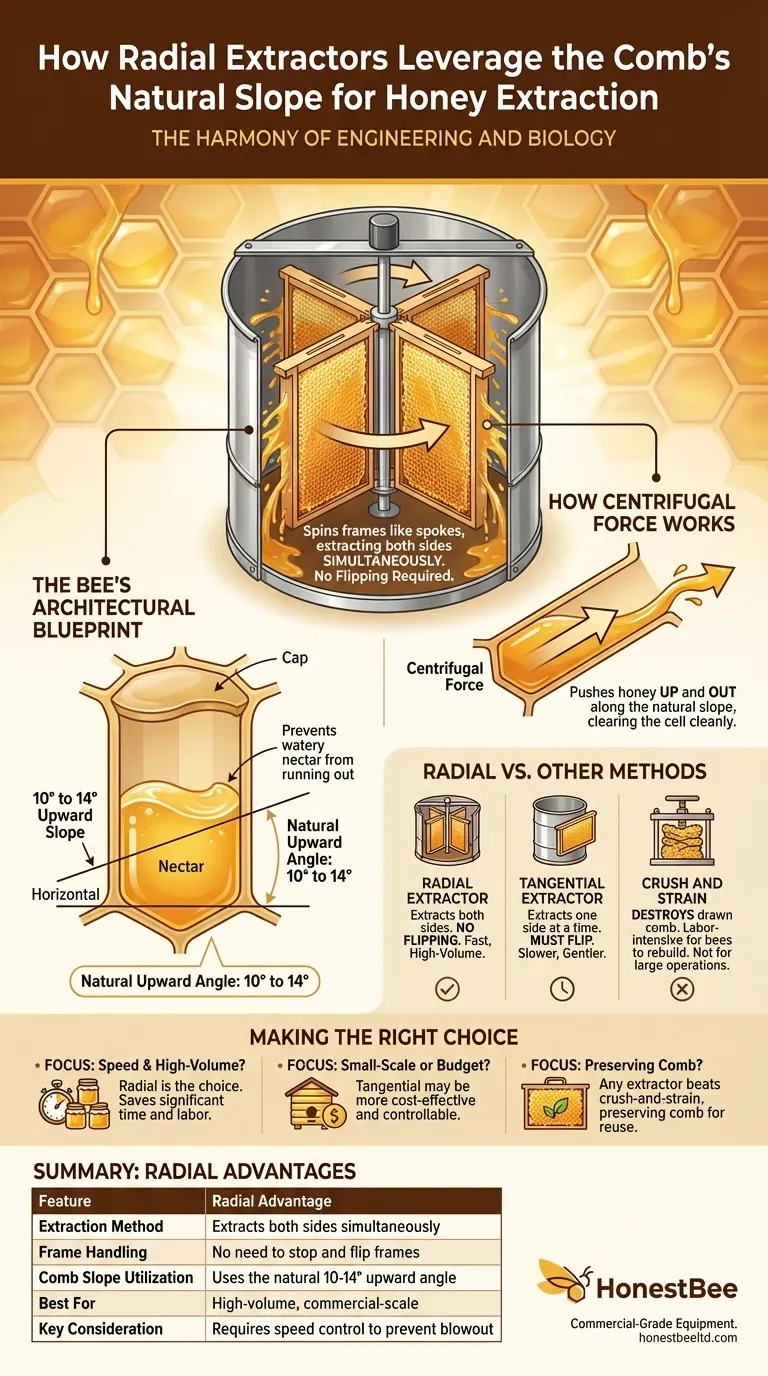

At its core, a radial extractor leverages centrifugal force in harmony with the bees' own architectural design. By spinning the frames, the extractor throws the honey outwards against the natural upward slope of each cell, using physics to efficiently slide the honey out without requiring the frames to be flipped.
The true advantage of a radial extractor is not just the spinning motion, but its ability to align that force with the natural 10- to 14-degree upward angle of honeycomb cells, extracting from both sides of the comb simultaneously.
The Engineering Behind the Biology
To understand why radial extractors are so effective, you must first appreciate the structure of the honeycomb itself. This isn't just about speed; it's about working with nature, not against it.
The Bee's Architectural Blueprint
Bees are master engineers. They build their hexagonal wax cells with a slight upward tilt, typically between 10 and 14 degrees from the horizontal midrib of the comb.
This ingenious design serves a simple purpose: to prevent uncured, watery nectar from running out of the cell before it has been dehydrated and capped as honey.
How Centrifugal Force Works With the Slope
A radial extractor places frames vertically, like spokes in a wheel, with the top bars facing the outer wall of the drum.
When the extractor spins, it generates centrifugal force, which pushes the honey directly outwards, away from the center of the extractor.
Because the cells are already angled upwards, this outward force pushes the honey "up and out" along the natural slope of the cell. This clears the cell cleanly and completely.
The Key to Efficiency: No Flipping
Since the frames are positioned like spokes, the force acts on both sides of the comb at the same time. The honey from the inner and outer faces of the comb is extracted simultaneously.
This is the primary advantage over other designs. It eliminates the labor-intensive step of stopping the machine, flipping each frame, and restarting the process, drastically reducing extraction time for large operations.
Radial vs. Other Extraction Methods
The radial design is the standard for commercial beekeepers, but it's not the only option. Understanding the alternatives clarifies its specific benefits.
The Tangential Extractor
A tangential extractor holds frames with one side of the comb facing the outer wall. It spins, extracts the honey from that one side, and then must be stopped so the beekeeper can flip the frame to extract the other side.
While slower, this method can be gentler on combs as the wax is supported by the un-extracted side during the first spin.
The "Crush and Strain" Method
This is the most basic and destructive method. The beekeeper simply cuts or crushes the entire honeycomb and lets the honey drain out through a filter or press.
While it requires no special equipment, it destroys the drawn comb. This forces the bees to expend enormous energy rebuilding it, significantly setting back honey production. An extractor's greatest value is that it preserves this comb for reuse.
Understanding the Trade-offs
Despite its efficiency, the radial extractor is not without its limitations. Objectivity requires acknowledging its specific challenges.
The Risk of a "Blowout"
Because force is applied to both sides of the comb simultaneously, there is no internal support. If the extractor is spun too fast, too soon, the weight of the honey can cause the delicate wax comb to literally "blow out" and break away from its foundation.
This is especially a risk with new, fragile comb or very thick, cool honey. Experienced operators start slowly to extract some honey and reduce the weight before increasing the speed.
Power and Cost Requirements
Generating enough centrifugal force to clear honey from the upward-sloping cells requires significant speed and power. Radial extractors are therefore typically larger, more robustly built, and more expensive than their tangential counterparts.
Making the Right Choice for Your Goal
Your choice of extractor should be guided by the scale of your operation and your primary objectives.
- If your primary focus is speed and high-volume processing: The radial extractor is the undisputed choice, as its ability to extract both sides at once saves significant time and labor.
- If your primary focus is a small-scale hobby or budget: A smaller tangential extractor is often more cost-effective and can offer more control, making it a safer choice for delicate combs.
- If your primary focus is preserving the bees' work: Any centrifugal extractor is vastly superior to the crush-and-strain method, as it keeps the valuable drawn comb intact for the colony to reuse.
Understanding how your tools interact with the biology of the bee is the hallmark of a skilled beekeeper.
Summary Table:
| Feature | Radial Extractor Advantage |
|---|---|
| Extraction Method | Extracts both sides of the comb simultaneously |
| Frame Handling | No need to stop and flip frames |
| Comb Slope Utilization | Uses the natural 10-14° upward angle of honeycomb cells |
| Best For | High-volume, commercial-scale honey production |
| Key Consideration | Requires careful speed control to prevent comb blowout |
