What Are The Dimensions And Spacing Specifications For Frames In A Top-Bar Hive? A Guide To Perfect Bee Space

The standard width for a top bar in a top-bar hive is 1 and 3/8 inches. This specific dimension is not arbitrary; it is the cornerstone of the hive's design. When combined with a 3/16 inch space between the end walls and the first and last bars, this configuration is engineered to create the perfect 3/8 inch "bee space" throughout the entire hive, which is critical for a healthy and manageable colony.

The dimensions of a top-bar hive are dictated by the natural behavior of honeybees. The central design principle is creating a consistent "bee space" of 3/8 inch, which prevents bees from sealing gaps with propolis or building unwanted comb, making the hive functional and easy to inspect.

What are the dimensions and spacing specifications for frames in a top-bar hive? A Guide to Perfect Bee Space

The Core Principle: Understanding "Bee Space"

To properly manage a top-bar hive, you must first understand the concept of bee space. This single principle governs nearly every critical dimension in modern beekeeping.

What is Bee Space?

Bee space is the specific gap—measuring between 1/4 and 3/8 of an inch (6 to 9 mm)—that honeybees naturally leave open as a passageway. They will not build comb in this space, nor will they seal it shut with propolis (a resinous bee glue).

The Consequences of Incorrect Spacing

The success of your hive depends on respecting this measurement.

If a space is larger than 3/8 inch, bees will fill it with unwanted "burr comb." This makes it impossible to remove top bars without tearing comb and angering the colony.

If a space is smaller than 1/4 inch, bees will seal the gap with propolis, effectively gluing the components together and making inspections difficult or impossible.

How Top-Bar Dimensions Achieve Perfect Spacing

The 1 3/8 inch top bar width is a precise calculation. A naturally drawn honeycomb is approximately 1 inch thick. Bees require a 3/8 inch space between combs to work and move.

Therefore, the ideal distance from the center of one comb to the center of the next is 1 inch + 3/8 inch = 1 and 3/8 inches.

By making the top bars this exact width and pushing them together, you automatically set the perfect center-to-center spacing for the combs that will hang below them. The 3/16 inch gaps at the front and back walls ensure this bee space is also maintained between the end combs and the hive body.

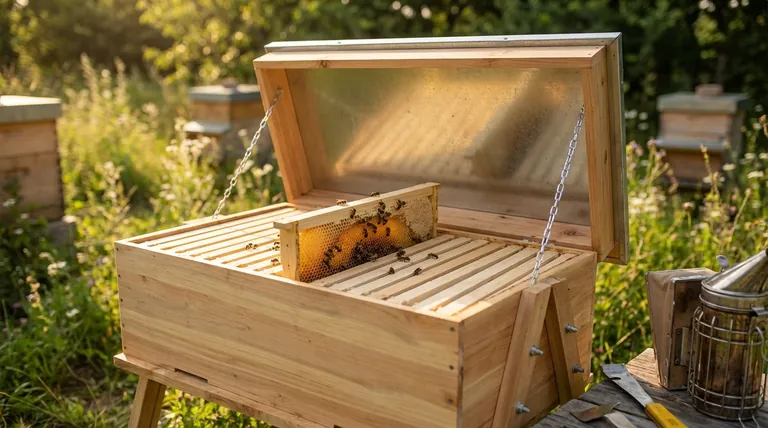

Anatomy of a Functional Top-Bar Hive

While the top bars are the key component, they work in concert with the rest of the hive's structure.

The Top Bars

These are the most critical pieces. Each bar serves as a movable "frame" from which bees build their comb. Most bars have a wooden wedge or a thin guide strip running along the bottom to encourage the bees to build straight, manageable combs.

The Hive Body

The main enclosure is typically a long, horizontal trough. It can be a Kenyan style (with sloped sides) or a Tanzanian style (with straight, rectangular sides). The sloped sides of the Kenyan hive discourage bees from attaching their comb to the hive walls, making removal easier.

Follower Boards

A follower board is a solid panel shaped like the hive's internal profile. It acts as a movable wall, allowing you to shrink or expand the available space for the colony. This is essential for helping a new, small colony manage temperature and defend its home.

Understanding the Trade-offs

The top-bar hive is an excellent design, but it's important to be aware of its specific advantages and disadvantages compared to other systems like the Langstroth hive.

Pro: Simplicity and Natural Beekeeping

Top-bar hives are a single, self-contained unit. There is no need for lifting heavy boxes (supers), making them ideal for beekeepers with physical limitations. They also allow bees to build their comb with natural cell sizes, which is a key tenet of "natural beekeeping."

Con: Fragile Combs

Because the comb is only attached at the top and not supported by a four-sided frame, it is extremely fragile. New beekeepers must learn to handle and turn the bars carefully to avoid having a comb break off, which is a major setback for the colony.

Con: Inspection and Management

While simple, management requires diligence. If the hive is not perfectly level or if bars are left out of place, bees may build "cross comb" across multiple bars. This creates a serious problem that is difficult to fix without destroying comb and disrupting the hive.

Making the Right Choice for Your Goal

Deciding on a hive style depends entirely on your personal objectives as a beekeeper.

If your primary focus is natural beekeeping and minimal heavy lifting: The top-bar hive is an excellent choice due to its simple, all-in-one design and management style.
If your primary focus is maximizing honey production and interchangeability: A Langstroth hive might be a better fit, as its standardized, fully-framed components are designed for efficient honey extraction and equipment sharing.
If your primary focus is building your own hive from plans: Adhering strictly to the 1 3/8" top bar width is the single most critical factor for ensuring your hive will be functional and successful.

Understanding these core principles empowers you to create a successful hive that works in harmony with the bees' natural instincts.

Summary Table:

Specification	Dimension	Purpose
Top Bar Width	1 3/8 inches	Sets the correct center-to-center comb spacing.
Bee Space	3/8 inch	Prevents propolis sealing and burr comb.
End Gap	3/16 inch	Maintains bee space between end combs and hive walls.
